MB5001C Series

This product has been discontinued. Please refer to MB5201 as the replacement. For detailed support, please refer to the notice or contact our product expert or your local agent.

  1-Port Serial-to-Ethernet Modbus Gateway, Compact Version, optional Isolation Rugged metal housing with DIN-Rail / Wall-Mount Ease-of-use in Modbus protocol conversion include RTU, ASCII and TCP 15 KV ESD protection for serial signals(MB5001C-Sis only) 1 x 10/100Mbps Fast Ethernet Port, Full Duplex Auto Negotiation Monitor, Manage and Control Industrial Field Devices Remotely Configurable via Built-In Web Server Serial Console, or Telnet Upgradeable firmware from remote-PC via Ethernet Removable 3-pin Terminal Block(DC 9-30V) + DC Jack (DC 5V), two types of power input for MB5001C Removable 3-pin Terminal Block power input(DC 9-30V) for MB5001C-Sis Operating temperature ranges from 0°C~60°C

Product Overview Modbus is an industry adopted communication protocol that is based on RTU, ASCII, and TCP protocols for various of applications; these three protocols are commonly used by a lot of equipments in the industry, such as DCS, PLC, HMI, power meters, various sensors and measuring instruments. MB5001C series supports the standard Modbus protocol and is capable of converting the Modbus protocols between Modbus TCP (Master) to Modbus RTU/ASCII (Slave). It’s a simple and cost effective Modbus Gateway. Diverse Hardware Infrastructure MB5001C series which supports the three most commonly used serial communication interfaces, RS-232, RS-422 and RS-485. It also provides a web-based configuration UI, so the users can select the serial interface easily.
Network Interface
Speed IEEE 802.3 10BaseT IEEE 802.3u 100BaseT(X)
Auto-negotiation Present
Auto MDI/MDI-X Present
Connector ports RJ45 x 1
Serial Interface
Connector 9-pin D-Sub(MB5001C) 5-pin 3.81mm Terminal block(MB5001C-Sis)
Mode RS-232/RS-422/RS-485 Software selectable(MB5001C) RS-422/RS-485 Isolation Software selectable(MB5001C-Sis)
Ports 1
Baud Rate 1,200bps ~ 230kbps software selectable
Data Bits 7, 8 software selectable
Stop Bits 1, 2 software selectable
Flow Control None, Xon/Xoff, RTS/CTS
Protection 15kV ESD protection
Software
Protocols IPv4, ICMP, TCP, UDP, DHCP Client, Telnet, ModBus TCP/ASCII/RTU, SNMP, HTTP
Configuration Atop Management Utility, Web UI, Telnet
VirtualCOM Windows/Linux redirection software
Modbus TCP Yes
Modbus RTU Yes
Modbus ASCII Yes
Power Value
Input Voltage DC 5V and 9-30V (MB5001C); DC 9-30V (MB5001C-SiS)
Power Consumption Approximately 2.70 W (MB5001C); 3.60 W (MB5001C-SiS)
Power Redundancy Yes (MB5001C only)
Connector 3-Pin 5.08mm Lockable Terminal Block and DC Jack (5VDC) (MB5001C only)
Reverse Polarity Protection Yes
Physical Characteristics Value
Dimension (W x H x D) 65mm x 28mm x 78mm (MB5001C)
Dimension (W x H x D) 85mm x 28mm x 74mm (MB5001C-Sis)
Weight 180g
Installation Wall mount, DIN-Rail (optional)
Reset Button Yes
Environmental Limits
Operating Temperature 0°C ~ 60°C ( 32º ~ 140ºF )
Storage Temperature -40°C~85°C (-40°F~185°F)
Ambient Relative Humidity 5%~95%, 55°C (Non-condensing)
Approvals
Safety CE LVD EN62368-1:2014/A11:2017
EMC CE EMC EN55032:2012+AC:2013 , Class A CE EMC EN55024:2010 FCC Part 15B , Class A
Test Item Value Level
IEC 61000-4-2 ESD Contact Discharge Air Discharge ±4KV ±8KV 2 3
IEC 61000-4-3 RS Radiated(Enclosure) 3 V/m 2
IEC 61000-4-4 EFT DC Power Port Signal Port ±1.0KV ±0.5kV 2 2
IEC 61000-4-5 Surge DC Power Port Line to Line ±1.0kV 3
IEC 61000-4-6 CS 0.15-80MHz 3 Vr.m.s 2
IEC 61000-4-8 PFMF Enclosure 1 A/m 1
IEC 61000-4-11 DIP AC Power Port - -
Certification Standard
Shock IEC 60068-2-27
Drop IEC 60068-2-32
Vibration IEC 60068-2-64
Protection IEC/EN60529 - IP30
RoHS Yes
MTBF 55.46 Years (MIL-HDBK-217F)
Warranty 5 Years
MODEL NAME PART NUMBER DESCRIPTION

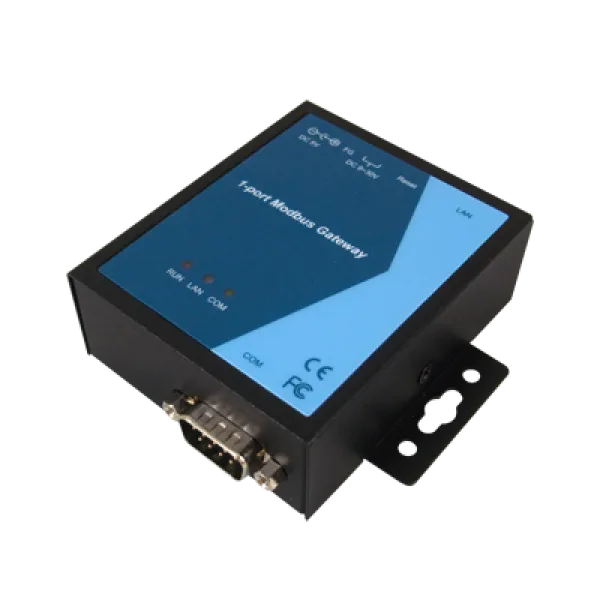

MB5001C 1P1MB5001C0001G 1-LAN port software selectable RS-232/422/485(DB9) ModBus Gateway

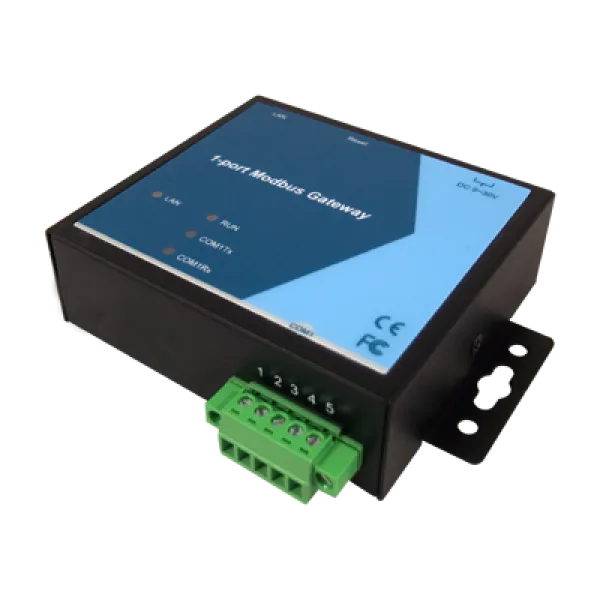

MB5001C-Sis 1P1MB5001C0002G 1-LAN port software selectable RS-422/485(TB5-with serial isolation) ModBus Gateway
MODEL NAME PART NUMBER DESCRIPTION
UN315-1212 (US-Y) 50500151120003G Y-Type power adapter, 100~240VAC input, 1.25A @ 12VDC output, US plug, LV6
UNE315-1212 (EU-Y) 50500151120013G Y-Type power adapter, 100~240VAC input, 1.25A @ 12VDC output, EU plug, LV6
UV305-0510(US-DC) 50500051500003G DC jack (3.5/1.35/7.5 mm) power adapter, 100~240VAC input, 1.0A @ 5 VDC output, US plug, LV6
UVE305-0510(EU-DC) 50500051500013G DC jack (3.5/1.35/7.5 mm) power adapter, 100~240VAC input, 1.0A @ 5 VDC output, EU plug, LV6
UVE305-0510(UK-DC) 50500051500023G DC jack (3.5/1.35/7.5 mm) power adapter, 100~240VAC input, 1.0A @ 5 VDC output, UK plug, LV6
DK-25 30200000000022G Plastic DIN Rail Kit
