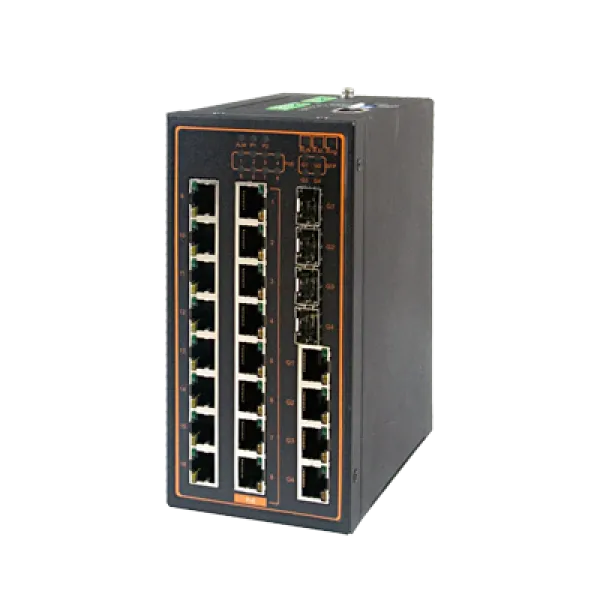

EH7520 Series

Industrial PoE Managed Switches

  • Up to 16 10/100 BASE-T(X) ports and 4 10/100/1000 BASE-T(X) Combo ports
  • Up to 8 802.3af or 802.3at complaint PoE ports
  • ERPS Ring (recovery time < 20ms @ 40 switches), STP/RSTP/MSTP for network redundancy
  • Remote management over Web browser, Telnet console, serial console, and Windows Utility
  • Profinet CC-B v2.33 certified and GSDML file provided
  • Security features based on IEC62443-4-2

The EH7520 Series is a highly reliable and fault-tolerant Industrial Managed PoE Ethernet Switch. It equips up to sixteen 10/100BASE-T(X) RJ-45 ports and up to four 10/100/1000BASE-T(X)/FX RJ-45 and SFP ports. With its high performance switching capacity, EH7520 Series provides network redundant self-recovery mechanism is less than 20ms on full load which allows you to scheme a reliable Ethernet network by building a redundant ring topology as your back-up solution. With a Multifunctional web dashboard, EH7520 Series offers intelligent features such as Quality of service (QoS), Virtual LAN (VLAN), IGMP, Port mirroring and security. To prevent network intrusions, it is necessary to have a good accessing control mechanism that can identify, authenticate and authorize users. EH7520 supports user account, password policy, and authentication interface managements functions that comply with IEC62443 standard.

The EH7520 Series is designed for Industrial rugged applications. It equips a 5-pins terminal block to provide dual redundant power inputs with Reverse Polarity Protection and two sets of relay which allows field engineers to build up a stand-alone fault alarm system. Its IP30 housing protection, wide operating temperature of -20 to 70°C and DIN-Rail mounting capacities are liable to do most industrial filed applications.

Being Profinet CC-B v2.33 certified, this switch Series is Automation and IoT ready. Profinet allows wired and wireless combinations for an array of connectivity options, providing a more effective backbone for your automation operations.
Ethernet
Standards IEEE802.3af / 802.3at for Power-over-Ethernet
IEEE802.3 for 10BASE-T
IEEE802.3u for 100BASE-T(X) and 100BASE-FX
IEEE802.3ab for 1000BASE-T(X)
IEEE802.3z for 1000BASE-X
IEEE802.3x for Flow Control
IEEE802.1D-2004 for Spanning Tree Protocol
IEEE802.1w for Rapid STP
IEEE802.1Q for VLAN Tagging
IEEE802.1p for Class of Service
IEEE8021X for Authentication
IEEE802.3ad for Port Trunk with LACP
Protocols IGMPv1/v2, GVRP, SNMPv1/v2c/v3, ICMP, ARP, Telnet, TFTP, SNTP, SMTP, RMON, HTTP, Syslog, PROFINET, Modbus/TCP, LLDP,IEEE 1588 PTP V1/ V2, IPv4, NTP Client, EAP, RADIUS, 802.1x, IPv4, IPv6, IGMP Snooping, GARP, GMRP, SNMP Inform, SSH, DHCP Relay/Client, BootP, NTP Server/ Client, SMTP(Gmail), MRP (Client), TACACS+, Mirror port, QoS, ACL, Serial Console, U-Ring, STP, RSTP, MSTP, Redundancy Compatible Ring, Profinet, Modbus/TCP,UDLD,Security, Trunk, LACP, MLD, 802.1Q VLAN, Port-Based VLAN, MAC-Based VLAN, IP-Subnet-Based VLAN, Protocol-Based VLAN, QinQ,802.1x, ARP spoof Prevention, DHCP snooping, IP source Guard, Dynamic ARP Inspection, DHCP relay Agent
Automation Profiles Profinet CC-B v2.33 certified
MIB MIB II, IF-MIB, SNMPv2 MIB, BRIDGE-MIB, RMON MIB Group 1, 2, 3, 9
NTP Server/Client, SNTP
Flow Control IEEE802.3x for Flow Control, back pressure flow control
Switch Properties
Priority Queues 8
Max. Number of Available VLANs 256
VLAN ID Range VID 1 to 4,094
Static IGMP Groups 256
Dynamic IGMP Groups 256
MAC Table Size 16k
Packet Buffer Size 12 Mbit
Interfaces Value
RJ45 Ports 10/100/1000BASE-T(X) or 10/100 BASE-T(X) auto negotiation speed
Fiber Optics Ports 100BASE-FX / 1000BASE-X SFP slot
LED Indicators PWR1, PWR2, Alarm, Run, Ring, Ring Master, RJ-45 Link/Speed, SFP Link, PoE
Console RS232 (RJ45 connecte)
Relay Output 2 relay outputs with current carrying capacity of 2A @30VDC
DIP Switches Ring Control
Button Reset Button
Power
Input Voltage 9-48 VDC or 18~30VAC for Non-PoE models
45-57 VDC for 802.3af mode
51-57 VDC for 802.3at mode
Input Current (System) Max. 1.5A @ 18VAC
Max. 2.0A @ 9VDC (without PD)
Max. 3.2A @ 45VDC (Support up to 8 ports at 15.4W per PoE port)
Max. 5.5A @ 51VDC (Support up to 8 ports at 30W per PoE port)
Connector Removable 5-pin Terminal Block for power input
Reverse Polarity Protection Present (DC only)
Physical Characteristics
Housing IP30 protection, metal housing
Dimension (W x H x D) 80mm x 137.9mm x 164mm
Weight 1.4kg
Installation DIN-Rail , Wall mount (optional kit)
Environmental Limits
Operating Temperature -20°C~70°C (-4°F~158°F)
Storage Temperature -40°C~85°C (-40°F~185°F)
Ambient Relative Humidity 5%~95%, 55°C (Non-condensing)
Regulatory Approvals
Safety UL60950-1 2nd Ed. /CSA C22.2 No.60950-1-07 2nd Ed. / CB (IEC/EN62368-1 & IEC/EN60950-1)
EMC FCC Part 15, Subpart B, Class A / EN 61000-6-4:2007+A1:2011 / EN 61000-6-2:2005
RoHS 2 Yes
Test Item Value Level
IEC 61000-4-2 ESD Contact Discharge
Air Discharge		 ±6kV
±8kV		 3
3
IEC 61000-4-3 RS Radiated(Enclosure) 10 V/m
3 V/m
1 V/m		 3
3
3
IEC 61000-4-4 EFT AC Power Port
DC Power Port
Signal Port		 ±2.0KV
±2.0KV
±1.0KV		 3
3
3
IEC 61000-4-5 Surge AC Power Port Line-to-Line ±1.0KV
Line-to-Earth ±2.0KV		 3
3
DC Power Port Line-to-Line ±1.0KV
Line-to-Earth ±2.0KV		 3
3
Signal Port Line-to-Earth ±1.0KV 3
IEC 61000-4-6 CS Conducted (Enclosure) 10 Vrms 3
IEC 61000-4-8 PFMF Enclosure 30 (A/m) 4
IEC 61000-4-11 DIP AC Power Port - -
Shock IEC 60068-2-27
Drop IEC 60068-2-32
Vibration IEC 60068-2-64
RoHS Yes
MTBF TBD
Warranty 5 Years
MODEL NAME Part Number Description
EH7520-4G-8PoE-4SFP 1P1EH752000001G 16P*10/100TX with 8PoE;4P*Giga Combo
EH7520-4G-4PoE-4SFP 1P1EH752000002G 16P*10/100TX with 4PoE;4P*Giga Combo
EH7520-4G-4SFP 1P1EH752000003G 16P*10/100TX;4P*Giga Combo
Note: Number in parenthesis are combo ports

Optional Accessoriese

Model Name Part Number Description
CBL-RJ45(8P)- DB9(F)-90-C 50891971G 8-pin RJ45 to DB9 Female Cross Over Cable, 90cm
WMK-450-Black 70100000000052G Aluminum wall mount kit
AD1120-48F 59906231G 120W/2.5A DIN-Rail 48 VDC power supply with universal 100~240VAC/120-370VDC input
AD1240-48C 50502401550001G 240W/5A DIN-Rail 48 VDC power supply with universal 100~240VAC/120-370VDC input
AXGD-5854-0513 522AXGD5854001G SFP Transceiver, 1250Mbps, 850nm, Multi-mode, 550m, 3.3V, -40~85°C, DDMI
AXGD-1354-0523 522AXGD1354001G SFP Transceiver, 1250Mbps, 1310nm, Multi-mode, 2km, 3.3V, -40~85°C, DDMI
AXGD-1354-0533 522AXGD1354011G SFP Transceiver, 1250Mbps, 1310nm, Single-mode, 10km, 3.3V, -40~85°C, DDMI
AXGD-3354-0593 522AXGD3354001G SFP Transceiver, 1250Mbps, 1310nm, Single-mode, 40km, 3.3V, -40~85°C,DDMI
AXFD-1314-0523 522AXFD1314001G SFP Transceiver;155Mbps, Multi-mode;1310nm;2km;-40~85, DDMI
AXFD-1314-0553 522AXFD1314011G SFP Transceiver;155Mbps, Single-mode;1310nm;30km;-40~85, DDMI
Note: Please choose a power supply wisely based on the actual power requirement. EH7520’s system require 18W and each PoE port adds 15W for 802.3af or 30W for 802.3at.
