RHG7528 Series

Industrial Rack-Mount Modular Managed Gigabit Ethernet PoE Switch with up to 24 x Gigabit ports and 4 x 10 Gigabit SFP uplink slots, wide temperature

10/1GbE Modular Layer2 Managed PoE Rackmount Switch

  • 128 Gbps max. switching capacity and 95.23 Mpps max. switching fabric
  • Designed to operate in harsh environments of -40°C to 75°C
  • Flexible modular configuration, 3 Module-dedicated slots
  • Swappable modules for flexibility to work in all kinds of scenarios
  • Up to 24x PoE ports, max. power budget 720 W
  • 4x 10 GbE /1 GbE uplink SFP slots
  • 4 kinds of power input available for different harsh environments
  • ITU-T G.8032 ERPS Ring, RSTP, or MRP (Manager/Client) redundancy
  • EN50155 / EN50121-4 certified for railway applications
  • Precision time synchronization with IEEE1588v2 P2P/E2E TC, delay within 50ns
  • Compliant with IEC 62443-4-1 and IEC 62443-4-2 security standards

Flexible and powerful
ATOP’s high-density RHG7528 layer2-managed rackmount switch provides the flexibility to meet all kinds of requirements. Customization is made easy with 8 different switch cores, differing in power supply and uplink ports, and 3 swappable modules of different port types. Of these, PoE ports allow both power and data transmission to wherever the Ethernet cable can reach. With 3 modules of 8 ports each, RHG7528 supports up to 24 Gigabit PoE/PoE+ (IEEE 802.3af/at) ports, so has at maximum 720W total power budget.

ugged and resilient
Designed to work in all kinds of harsh environments, RHG7528 is EN 60950-1:2006 certified, available in 4 types of power input, fanless, and provides EMC level-3 protection. Reliable operation is guaranteed in the wide-range temperature of -40°C to +75°C. Various supported ring protocols enable self-healing ability for your network. ITU-T G.8032 ERPS Ring can even recover the network within 25 ms on full load of 250 devices. User-friendly WUI allows simple setup of basic functions like VLAN, QoS, IGMP, as well as network diagnostics via Port Mirroring.

Proven quality
The RHG7528 Series is compliant with IEC 62443-4-1 and IEC 62443-4-2 standards, which means that its development process as well as product features achieve world-class industrial network security. In addition, ACL by IP/MAC and 802.1x port access control with RADIUS filters unauthorized hosts, helping to keep your network safe. Furthermore, the RHG7528 Series is EN 50155-certified to ensure reliable performance under a wide range of power supply conditions, and complies with essential sections of EN 50121-4 for railway ground equipment. Consult RHG7528 datasheet to learn more about modules and configuration examples.
Switch Properties
Priority Queues 8
VLAN Table 4,096
MAC-Based VLAN 512
VLAN ID Range VID 1 to 4,094
Static IGMP Groups 128
Dynamic IGMP Groups 256
MAC Table Size 16k
Packet Buffer Size 1.5 MB
Jumbo Frame 9 K (9216 Bytes)
Switching Fabric Capacity 56 Gbps (4SFP model) / 128 Gbps (410GSFP model)
Maximum throughput 41.67 Mpps (4SFP model) / 95.24 Mpps (410GSFP model)
Ethernet
Standards IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseX
IEEE 802.3ae for 10 Gigabit Ethernet Fiber
IEEE 802.3x for Flow Control with back pressure flow control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1Q for VLAN Tagging
IEEE 802.1p for Class of Service
IEEE 802.1X for Authentication
IEEE 802.3ad for Port Trunk with LACP
IEEE 802.3az for Energy Efficient Ethernet
Protocols IPv4, IPv6, IGMPv1/v2/v3, IGMP snooping, GARP, GMRP, GVRP, SNMPv1/ v2c/v3, SNMP Trap, ICMP, Telnet, SSH, Client/IP-port-mapping, BootP, TFTP, SMTP, SMTP (Gmail), RMON, HTTP, HTTPS, Syslog, MRP (Manager/Client), LLDP, 802.1x, EAP, RADIUS,TACACS+, Mirror port, QoS, ACL, ITU-T G.8032 ERPS Ring, STP, RSTP, MSTP, Compatible Ring/Chain, U-Ring, NTP Server/Client, Serial Console, Modbus/TCP, IEEE 1588 PTP V1/V2, UDLD, Security, PoE, Trunk, LACP, MLD, 802.1Q VLAN, Port-Based VLAN,MAC-Based VLAN, IP-Subnet-Based VLAN, Protocol-Based VLAN, QinQ, 802.1x, ARP spoof Prevention, DHCP snooping, IP source Guard, Dynamic ARP Inspection, DHCP relay Agent, Voice VLAN, sFlow, PoE continue
Redundancy ITU-T G.8032 ERPS Ring, STP, RSTP, MSTP, Compatible Ring/Chain, U-Ring
Time Synchronization Network Synchronization NTP Server/Client, SNTP
Precision Network Synchronization IEEE1588 PTP v1/v2
IEEE1588 Hardware-based end-to-end transparent clock
Automation Profiles Modbus/TCP status registers
MIB MIB II, IF-MIB, SNMPv2 MIB, BRIDGE-MIB, RMON MIB Group 1,2,3,9, RFC RFC 1157, RFC 1213, RFC 1215, RFC 1493, RFC 1643, RFC 1757, RFC 2011, RFC 2012, RFC 2013, RFC 2233, RFC 2571, RFC 2742, RFC 2819, RFC 2863, RFC 3411, RFC 3412, RFC 3413, RFC 3414, RFC 3415, RFC 2674
Power
Rated Supply Voltage Switch Core DC version: redundant 48-57 VDC
AC version: single 110-220 VAC
Redundant AC version: dual 110-220 VAC
Mixed AC/DC -Redundant: 1x 110-220VAC & 1x 48-57VDC
PoE 2x 48-57 VDC
Input Voltage Switch Core DC version: redundant 48-57 VDC
AC version: single 110-220 VAC
Redundant AC version: dual 110-220 VAC
Mixed AC/DC -Redundant: 1x 110-220VAC & 1x 48-57VDC
PoE 2 x 48-57 VDC
Max. Input Current CPU board AC/ redundant AC: 64 W@110 VAC (with input current 0.6 A)
CPU board redundand DC : 32.7 W@48 VDC (with input current 0.68 A)
Full load of 802.3af PoE: 370 W@45 VDC (with input current 8.4 A)
Full load of 802.3at PoE+: 720 W@51 VDC (with input current 14.4 A)
Connectors 2x Lockable 5-pin terminal blocks for PoE power input (all models)
2x Lockable 3-pin terminal blocks for DC power input (DC models)
1-2x AC power input (1x for non-redundant/-MR models; 2x for -R model )
1x Lockable 3-pin terminal blocks for DC power input (-MR model)
Relay Output 2 x Relay Output with current carrying capacity of 1A @ 24 VDC
Reverse Polarity Protection Yes
Physical Characteristics
Housing IP30 SPCC metal housing
Dimension (W x H x D) 440 x 44 x 340 mm (not including screws and rack-mount kit)
Weight 5Kg (not including module but module cover only)
Installation 1U Rack-mount, Rack-mount kit included
Environmental Limits Value
Operating Temperature -40°C to +75°C (-40°F to +167°F)
Storage Temperature -40°C to +85°C (-40°F to +185°F)
Ambient Relative Humidity 5% to 95% (Non-condensing test @ 55°C)
Regulatory Approvals
Safety UL 60950-1 2nd Ed. /CSA C22.2 No.60950-1-07 2nd Ed. / EN 60950-1 / UL 62368-1 / IEC 62368-1
EMC FCC Part 15, Subpart B, Class A
EN 55032, EN 55024, EN 61000-3-2, EN 61000-3-3, EN 61000-6-2, EN 61000-6-4
Test Item Value Level
IEC 61000-4-2 ESD Contact Discharge
Air Discharge		 ±8kV
±15kV		 4
4
IEC 61000-4-3 RS Enclosure Port 10(V/m), 80-1000MHz 3*
IEC 61000-4-4 EFT AC Power Port
DC Power Port
Signal Port		 ±2.0kV
±2.0KV
±2.0KV		 3
3
4
IEC 61000-4-5 Surge AC Power Port Line-to-Line ± 1.0 kV
Line-to-Earth ± 2.0 kV 		 3
3
DC Power Port Line-to-Line ± 1.0 kV
Line-to-Earth ± 2.0 kV 		 3
3
Signal Port Line-to-Earth ± 2.0 kV 3
IEC 61000-4-6 CS 0.15-80MHz 10 V rms 3*
IEC 61000-4-8 PFMF Enclosure AC 50Hz 10A/m 3
IEC 61000-4-11 DIP AC Power Port - -
Shock MIL-STD-810G Method 516.5
Freefall MIL-STD-810F Method 516.5
Vibration MIL-STD-810F Method 514.5 C-1 & C-2
Rail Traffic EN50155 / EN50121-4 Certified
MTBF 12.20 Years
Warranty 5 Years
RoHS Yes
* EMC level 3 on CS/RS pass conditional to the use of Shielded Ethernet Cable

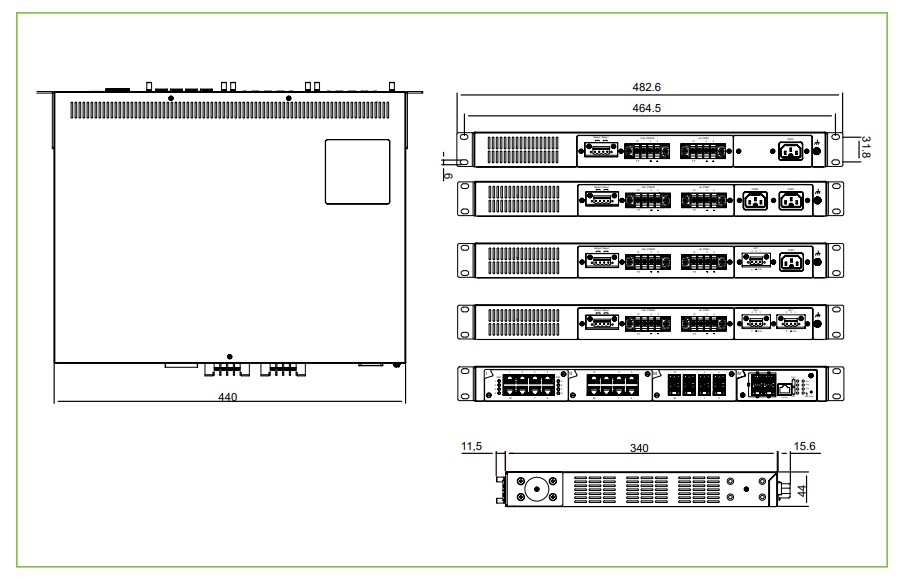

DIMENSIONS & LAYOUT

DIMENSIONS & LAYOUT

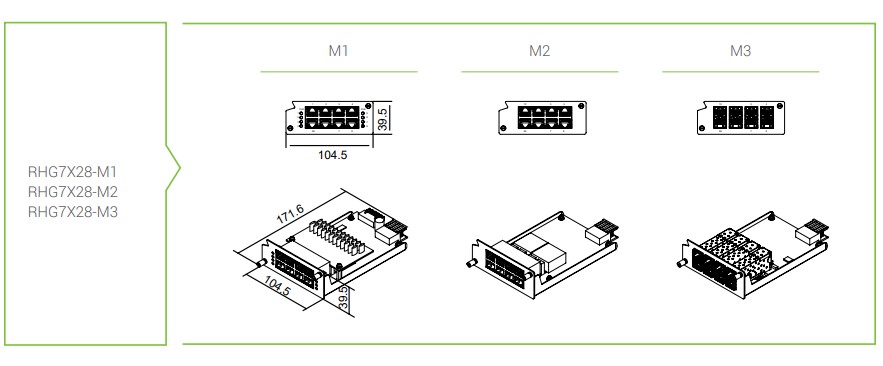

MODULES

Core Switch Ordering Information

MODEL NAME PART NUMBER 1Gb Uplink
SFP		 10Gb
Uplink SFP		 110-220 VAC
input		 48-57 VDC
input		 48-57 VDC
PoE input
RHG7528-CPU-4SFP 1P1RHG7528CPU1G 4 - 1 - 2
RHG7528-CPU-4SFP-R 1P1RHG7528CPU2G 4 - 2 - 2
RHG7528-CPU-4SFP-DC 1P1RHG7528CPU3G 4 - - 2 2
RHG7528-CPU-410GSFP 1P1RHG7528CPU4G - 4 1 - 2
RHG7528-CPU-410GSFP-R 1P1RHG7528CPU5G - 4 2 - 2
RHG7528-CPU-410GSFP-DC 1P1RHG7528CPU6G - 4 - 2 2
RHG7528-CPU-4SFP-MR 1P1RHG7528CPU7G 4 - 1 1 2
RHG7528-CPU-410GSFP-MR 1P1RHG7528CPU8G - 4 1 1 2

Module Ordering Information

MODEL NAME PART NUMBER Description
RHG7X28-M1 1P1RHG7X28M101G Module with 8x Gb PoE RJ-45
RHG7X28-M2 1P1RHG7X28M201G Module with 8x Gb RJ-45
RHG7X28-M3 1P1RHG7X28M301G Module with 8x Gb SFP Slots

Optional Accessories

MODEL NAME PART NUMBER DESCRIPTION
AC power cable (US) 50801341G AC power cable (SS004-240) for US region
AC power cable (EU plug) 50801351G AC power cable (SS004-241) for EU region
SDR-240-48 50502401480001G DIN-rail power supply; 48-55 VDC, 100-240 VAC; 240 W@48 VDC (w/ input current 5 A)
SDR-480-48 50504801480001G DIN-rail power supply; 48-55 VDC, 100-240 VAC; 480 W@48 VDC (w/ input current 10 A)
AXFD-1314-0523 522AXFD1314001G SFP Transceiver, 155Mbps, Multi-mode, 1310nm, 2km, -40°C to +85°C, DDMI
AXFD-1314-0553 522AXFD1314011G SFP Transceiver, 155Mbps, Single-mode,1310nm, 30km, -40°C to +85°C, DDMI
AXGD-5854-0513 522AXGD5854001G SFP Transceiver, 1250Mbps, 850nm, Multi-mode, 550m, 3.3V, -40°C to +85°C, DDMI
AXGD-1354-0523 522AXGD1354001G SFP Transceiver, 1250Mbps, 1310nm, Multi-mode, 2km, 3.3V, -40°C to +85°C, DDMI
AXGD-1354-0533 522AXGD1354011G SFP Transceiver, 1250Mbps, 1310nm, Single-mode, 10km, 3.3V, -40°C to +85°C, DDMI
AXGD-3354-0593 522AXGD3354001G SFP Transceiver, 1250Mbps, 1310nm, Single-mode, 40km, 3.3V, -40°C to +85°C, DDMI
AXXE-5886-05B3 522AXXE5886001G SFP Transceiver, 10Gbps Multi, 850nm, 300m, -40°C to +85°C

Datasheet

VERSION NAME TIME SIZE DOWNLOAD
v4.0 Datasheet EN 2024-10-08 1.02 MB
15 older versions

Hardware Installation Guide

VERSION NAME TIME SIZE DOWNLOAD
v2.0 RHG7528-RHG7628 Hardware Installation guide 2024-12-20 5.88 MB

Manual

VERSION NAME TIME SIZE DOWNLOAD
v2.0 EHG75XX/EHG95XX/RHG75XX/EMG85XX User Manual 2022-10-21 5.59 MB
v1.7 EHG75XX/ EMG85XX/ RHG75XX/ RHG95XX/ EHG95XX User Manual 2020-12-18 5.43 MB

Firmware

VERSION NAME TIME SIZE DOWNLOAD
v8.20 EHG75XX/EHG95XX/RHG7528/RHG9528/EMG85XX Firmware 2025-05-26 19.06 MB
5 older versions
v7.92 RHG75XX Firmware 2024-12-20 18.44 MB
v2.88 EHG75XX Firmware 2020-12-18 14.48 MB
1 older version

MIB

VERSION NAME TIME SIZE DOWNLOAD
EHG75XX MIB 2022-12-05 20.71 KB

Utility

VERSION NAME TIME SIZE DOWNLOAD
v5.60 Management Utility for Windows 2021-01-18 23.65 MB
1 older version
See in NMU Network Management Utility 2020-10-19

STP/DXF drawings

VERSION NAME TIME SIZE DOWNLOAD
RHG7528 STP 2024-12-20 82.70 MB

Test reports

VERSION NAME TIME SIZE DOWNLOAD
RHG7X28 Declarations of Conformity 2023-03-16 322.75 KB
v1.0 RHG7528-RHG7628 Certifications CB(IEC) UL 2019-11-20 10.55 MB
v1.0 RHG7528-RHG7628 Certifications CE 2019-11-20 15.16 MB
v1.0 RHG7528-RHG7628 Certifications EN50155 EN50121-4 Railway 2019-11-20 17.67 MB
v1.0 RHG7528-RHG7628 Certifications Environmental 2019-11-20 3.57 MB
v1.0 RHG7528-RHG7628 Certifications FCC 2019-11-20 5.69 MB
