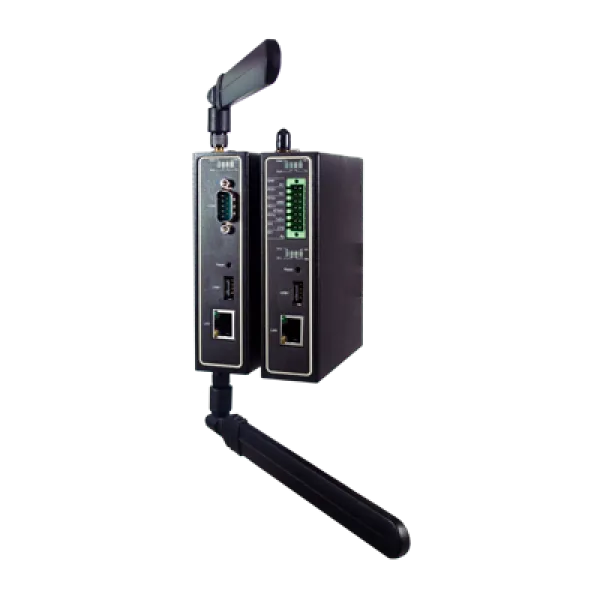

A compact and rugged 4G Modbus Gateway Based on ATOP’s Industrial-grade hardware, the MB5901B Series is a cost-effective Modbus Gateway for seamless conversion between Ethernet-based Modbus TCP and serial-based Modbus RTU/ASCII for demanding applications such as Industry 4.0 and Smart Grids. Its rugged, reliable hardware features high EMC protection, wide temperature operation, and programming and installation flexibility in one device, while its advanced performance protects your data over the Internet with secure IPsec VPN or OpenVPN tunnels, with its powerful CPU providing up to 37.9Mbps* software-assisted AES encryption. Flexibility In addition to offering installation flexibility, the MB5901B series’ configuration options enable it to be set up over Ethernet via Telnet, Web Browser, Serial Console, or our Windows Utility. Maintenance 4.0 ATOP Virtual COM software provides a virtual environment for applications when accessing MB5901B through TCP. Special management via SMS can be performed, such as polling data, issuing commands and system reboots. Added value A dedicated I/O version provides 2 x digital inputs and outputs each. These are also accessible via dedicated Modbus Registers. The -B version model also provides 15 seconds of back-up power in the event of a power failure, allowing the device to relay the failure to the host. *Coming soon: test carried out with one VPN-IPsec Tunnel, Peer-to-Peer mode, Ethernet cable. Performance can change based on the Cellular Network.

Network Interface
Speed	IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT(X)
Connector ports	1x 10/100/1000BASE-TX RJ-45

Wireless Interface
Standard	WCDMA/ DC-HSPA+/ LTE
Antennas/ SIM card	(4G) - Internal SIM card slot (x1)
Band Options	Version	Standard	Bands
	EU	FDD LTE	2100/1800/850/2600/900/800MHz (B1/B3/B5/B7/B8/B20)
		TDD LTE	2600/2300/2500MHz (B38/B40/B41)
		WCDMA	2100/850/900MHz (B1/B5/B8)
	US	FDD LTE	1900/1700/850/700/600bMHz (B2/B4/B5/B12/B13/B14/B66/B71)
		WCDMA	1900/1700/850MHz (B2/B4/B5)
Data Rate	Version	Standard	Downlink Speed	Uplink Speed
	EU	LTE-FDD	150 Mbps	50 Mbps
		LTE-TDD	130 Mbps	30 Mbps
		DC-HSPA+	42 Mbps	5.76 Mbps
		WCDMA	384 Kbps	384 Kbps
	US	LTE-FDD	150 Mbps	50 Mbps
		DC-HSPA+	42 Mbps	5.76 Mbps
		WCDMA	384 Kbps	384 Kbps

Serial Interface
Connector	D-Sub9 RS-232/485 software selectable (DB model) 14-Pin 5.08mm Terminal Block (integrated with DI/DOs)
Ports	1 port RS-232/485 (2-wire) software selectable 1 port RS-232 (IO model only)
Baud Rate	1,200 to 921,600bps software selectable
Data Bits	7, 8 software selectable
Stop Bits	1, 2 software selectable
Flow Control	None, Xon/Xoff, RTS/CTS (RS-232 only)

GNSS Interfaces
Supported GNSS	GPS, Glonass, Beidou
Connector	1x SMA

Other Interfaces
USB Ports	2
USB Speed	1 x USB 2.0 High Speed OTG; 1x USB power only
USB Connector	USB A Type
Digital Inputs (DI)	2 x channels photo coupler isolated digital input
Digital Outputs (DO)	2 x digital relay outputs. N.O.( 2A@24VDC)

Software
Security	IPsec or OpenVPN VPN tunneling. Max VPN throughput 37.9Mbps*; PPTP; SMTP/TLS
Management	Web, ATOP Device Management Utility, SNMPv1/v2c/v3, SMS
Configuration	Embedded Web-Server (Web UI), TELNET, Atop Device Management Utility
Modbus Protocols	Bi-directional Modbus TCP/RTU/ASCII, Virtual ID mapping
Modbus Gateway Supported Modes	Ethernet: Modbus TCP Server/Client(or VCOM); Serial: Modbus RTU/ASCII (master/slave)
Maximum Number of Modbus clients/slaves	Modbus TCP: Maximum 16 clients; Maximum 32 slave connections
* Coming soon: test carried out with one VPN-IPsec Tunnel, Peer-to-Peer mode, Ethernet cable. Performance can change based on the Cellular Network.

Power	Value
Input Voltage	9 - 48 VDC
Connector	3-Pin 5.08mm Lockable Terminal Block
Power Consumption	0.65A@12 VDC (Approx. 7.8W)
Power Redundancy	USB DC 5V Power Input
Reverse Polarity Protection	Yes

Physical Characteristics	Value
Housing	IP30 protection, SPCC metal housing

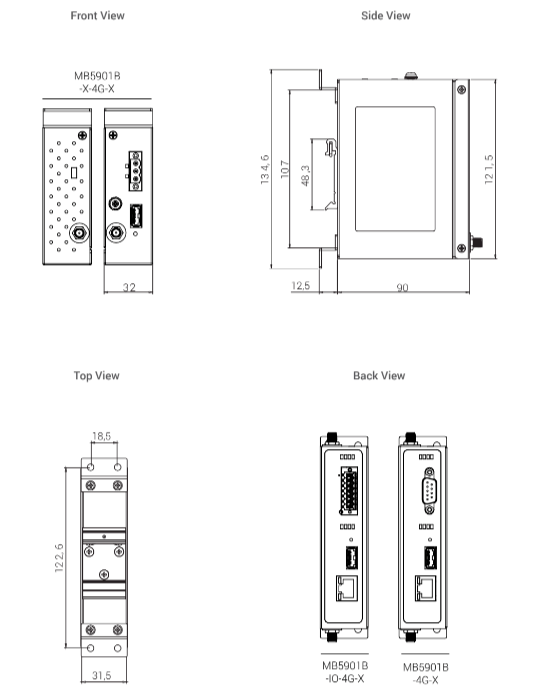

Dimension (W x H x D)	32mm x 122mm x 92mm
Weight	400g
Installation	DIN-Rail , Wall mount (optional kit)
Reset Button	Yes

Environmental Limits
Operating Temperature	-40°C~70°C (-40°F~158°F)
Storage Temperature	-40°C~85°C (-40°F~185°F)
Ambient Relative Humidity	5% to 95% (non-condensing)

Certification	Standard
Safety	CB (IEC/EN62368-1 & IEC/EN60950-1), UL60950-1
EMC/Radio	FCC 47 CFR PART 22H, FCC 47 CFR PART 24H, FCC PART 27L, FCC Part 15B, EN301489-1, EN301489-7, EN301489-19, EN301489-24, EN301489-52, EN301511, EN301908-1, EN303413, ETSI EN300440-1/-2 EN55032,EN55024, EN61000-6-2, EN61000-6-4

Standard	Item	Test	Value	Level
IEC 61000-4-2	ESD	Contact Discharge Air Discharge	±6KV ±8KV	3
IEC 61000-4-3	RS	Enclosure Port	10(V/m), 80-1000MHz	3
IEC 61000-4-4	EFT	DC Power Port Signal Port	±2.0KV ±1.0KV	3 3
IEC 61000-4-5	Surge	DC Power Port DC Power Port Signal Port	Line-to Line±1.0KV Line-to Earth±2.0KV Line-to Earth±2.0KV	3 3 3
IEC 61000-4-6	CS	0.15-80MHz	10V rms	3
IEC 61000-4-8	PFMF	(Enclosure)	AC 50Hz 30A/m	3

Certification	Standard
Shock	MIL-STD-810G Method 516.7
Drop	MIL-STD-810G Method 516.7
Vibration	MIL-STD-810G Method 514.7
RoHS	Yes
MTBF	20.88 years according to MIL-HDBK-217F (Model average)
Warranty	5 Years

MODEL NAME	CELLULAR	SERIAL PORTS	I/O	OTHER
MB5901B-4G-US	4G (US)	1 (DB9)		-
MB5901B-IO-4G-US	4G (US)	1 (TB) +1 RS232	2/2	-
MB5901B-IO-4G-GPS-US	4G (US)	1 (TB) +1 RS232	2/2	GPS
MB5901B-4G-B-US	4G (US)	1 (DB9)		Battery
MB5901B-IO-4G-B-US	4G (US)	1 (TB) +1 RS232	2/2	Battery
MB5901B-IO-4G-GPS-B-US	4G (US)	1 (TB) +1 RS232	2/2	GPS, Battery
MB5901B-4G-EU	4G (EU)	1 (DB9)		-
MB5901B-IO-4G-EU	4G (EU)	1 (TB) +1 RS232	2/2	-
MB5901B-IO-4G-GPS-EU	4G (EU)	1 (TB) +1 RS232	2/2	GPS
MB5901B-4G-B-EU	4G (EU)	1 (DB9)		Battery
MB5901B-IO-4G-B-EU	4G (EU)	1 (TB) +1 RS232	2/2	Battery
MB5901B-IO-4G-GPS-B-EU	4G (EU)	1 (TB) +1 RS232	2/2	GPS, Battery

MODEL NAME	PART NUMBER	DESCRIPTION
UN315-1212 (US-Y)	50500151120003G	Y-Type power adaptor, 100~240VAC input, 1.25A @ 12VDC output, US plug, LV6
UNE315-1212 (EU-Y)	50500151120013G	Y-Type power adaptor, 100~240VAC input, 1.25A @ 12VDC output, EU plug, LV6
ADP-DB9(F)-TB5	59906231G	Female DB9 to Female 3.81 TB5 Converter
WMK-315-Black	70100000000050G	Black Aluminum Wall Mount Kit
