Diverse Hardware Infrastructure
Modbus Gateway supports the four most commonly used communication standards, RS-232/485/422, and Ethernet. The ease-of-use configuration utility provided with Modbus Gateway can quickly select the hardware interface, and easily switch to the existing communication infrastructure. You could set it up via Web Browser, Serial Console, Telnet Console, Windows Utility or through the LCM display in front of the device. Industrial EMC protection makes MB5908A ready for every mission.

Embedded Security and advanced features
Relax. MB5908A Modbus Gateway supports OpenVPN and IPsec VPN encryption, allowing you to safely use the device over the internet without worrying about malicious attacks, data sniffing or unintentional remote control of your Modbus slaves. On your LAN, RSTP protocol will provide an additional layer of security in case of link losses.

Switching between Modbus Protocols
Modbus Gateway supports the standard Modbus protocol and is capable of converting any Modbus protocols between Modbus TCP, Modbus RTU, and Modbus ASCII for all supported hardware interfaces. All of this, in bidirectional mode: Ethernet and Serial ends can selected to be either master or slave.

Modbus ID Routing
Modbus Gateway supports various types of hardware communication interfaces, Modbus protocol conversion, and Modbus ID routing. Therefore the Modbus Gateway can integrate your existing and complex Modbus hardware configuration into a simple network that can be easily managed.

Modbus Data Concentrator
The Modbus Data Concentrator performs pre-defined Modbus commands to read/write data from the slave devices via serial ports. It mirrors slave device data to its own memory. Therefore, requesting masters can receive response in a shorter period, achieving better overall efficiency.




Regular Modbus gateway

Modbus Concentrator


Network Interface
Speed	IEEE 802.3 10BaseT IEEE 802.3u 100BaseT(X)
LAN Mode	Dual Subnets or Network Redundancy
Connector ports	2x 10/100BASE-T(X) RJ-45

Serial Interface
Connector	RJ45 RS-232/422/485 software selectable (-N models) or RJ45 Isolated RS-422/485 software selectable (-SiS models)
Ports	16
Baud Rate	1,200 ~ 921,600 bps software selectable
Data Bits	5, 6, 7, 8 software selectable
Stop Bits	1, 2 software selectable
Parity	None, Odd, Even, Space, Mark
Flow Control	None, Xon/Xoff, RTS/CTS
Isolation	2.5 kV (Sis versions only)

Software
Protocols	IPv4, ICMP, TCP, UDP, DHCP Client, SNMPv1,v2c,v3, HTTP, HTTPS, Telnet, RFC2217, 802.1D-2004 RSTP, Security through OpenVPN Client/Server or IPsec VPN (peer-to-peer or peer-to-side) with up to 37.9Mbps VPN throughput, PPTP, and SMTP/TLS
Configuration	Atop Management Utility, Web UI, Telnet
VirtualCOM	Windows/Linux redirection software
Modbus Gateway Supported Modes	Ethernet: Modbus TCP Server/Client(or VCOM); Serial: Modbus RTU/ASCII (master/slave)
Maximum number of Modbus clients/slaves	Modbus TCP: Maximum 16 clients; Maximum 32 slave connections
Modbus concentrator	Optional - please ask your ATOP Representative
Modbus redundant concentrator	Optional - please ask your ATOP Representative

Power	Value
Rated Supply Voltage	Redundant 24-48 VDC or Redundant 100-240 VAC/ 100-370 VDC (HV Series)
Input Voltage Range	Redundant 19.2-52.8 VDC or Redundant 85-264 VAC/ 100-370 VDC (HV Series)
Input Current	0.73 A @ 24 VDC 0.35 A @ 100 VAC 0.20 A @ 100 VDC
Power Consumption	Approximately 20 W (Max)
Connector	10-Pin Terminal Block
Power Redundancy	Yes
Reverse Polarity Protection	Yes

Physical Characteristics	Value
Housing	IP30, SPCC housing

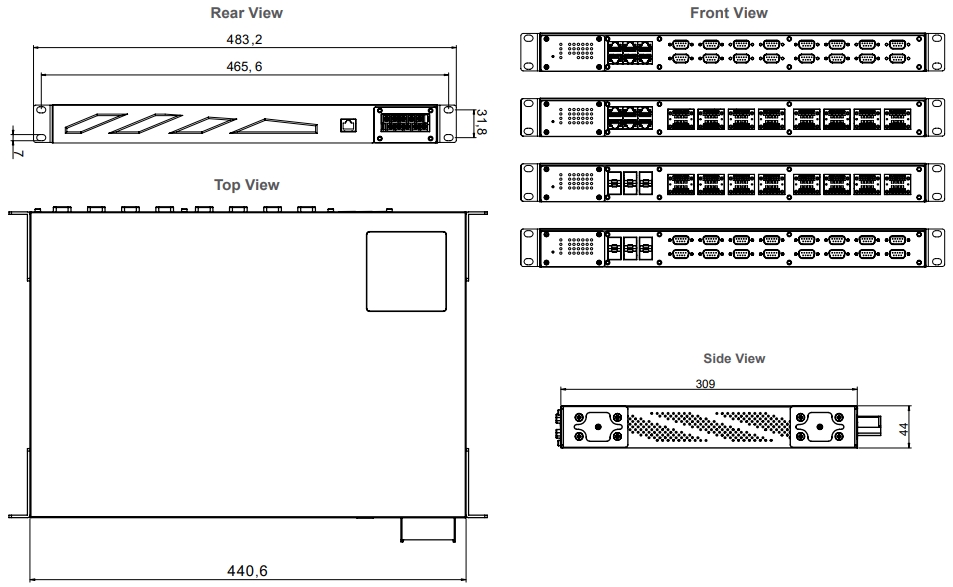

Dimension (W x H x D)	436 mm x 43.5 mm x 200 mm
Weight	3,000g (8-port version); 3,200 g (16-port version)
Installation	19’’ Rack-Mount (Kit included)
Reset Button	Yes

Environmental Limits
Operating Temperature	-40°C~80°C (-40°F~176°F)
Storage Temperature	-40°C~85°C (-40°F~185°F)
Ambient Relative Humidity	5%~95%, 55°C (Non-condensing)

Certification	Standard
Safety	EN61010-1, EN 61010-2-201
EMC	FCC Part 15, Subpart B, Class A, EN 55032, Class A, EN 61000-6-2, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-4, IEC 61850-3 / IEEE 1613

Standard	Item	Test	Value	Level
IEC 61000-4-2	ESD	Contact Discharge Air Discharge Contact Discharge Air Discharge	±8kV (For AC Version) ±15kV (For AC Version) ±6kV (For DC Version) ±8kV (For DC Version)	4 4 3 3
IEC 61000-4-3	RS	Radiated (enclosure)	10 V/m	3
IEC 61000-4-4	EFT	AC Power Port DC Power Port Signal Port	±4.0KV ±4.0KV ±2.0KV	4 4 3
IEC 61000-4-5	Surge	AC Power Port AC Power Port DC Power Port DC Power Port Signal Port	Line-to Line±2.0KV Line-to Earth±4.0KV Line-to Line±1.0KV Line-to Earth±2.0KV Line-to Earth±2.0KV	4 4 3 3 4
IEC 61000-4-6	CS	AC Power Port DC Power Port Signal Port	10 V rms 10 V rms 10 V rms	3 3 3
IEC 61000-4-8	PFMF	Enclosure	1 A/m	3
IEC 61000-4-11	DIP	AC Power Port	30% Reduction (Voltage Dips), 25/30 Cycle >95% Reduction(Voltage Dips), 0.5 period 100% Reduction (Voltage Interruption) : 250/300 Cycle	-

Certification	Standard
Shock Drop (Freefall) Vibration	MIL-STD-810F Method 516.5 MIL-STD-810F Method 516.5 MIL-STD-810F Method 514.5 C1 & C2
RoHS	Yes
MTBF	MB5916A-6SFP-Sis-HV: 9.18 years; MB5916A-6SFP-Sis: 8.63 years
Warranty	5 years

MODEL NAME	PART NUMBER	DESCRIPTION	ETHERNET PORTS	SERIAL PORTS
MB5908A CT	Contact ATOP headquarters	Industrial 8-Port Modbus Concentrator, DB9(M), RS- 232/422/485, RJ45, dual pwr input	6 (RJ45)	8 (DB9)
MB5908A-TB CT		Industrial 8-Port Modbus Concentrator, Terminal Block, RS-232/422/485, RJ45, dual pwr input	6 (RJ45)	8 (TB5)
MB5908A-Sis CT		Block, RS-232/422/485, 3kV Isolation, RJ45, dual	6 (RJ45)	8 (TB5)
MB5908A-6SFP CT		Industrial 8-Port Modbus Concentrator, DB9(M), RS- 232/422/485, SFP, dual pwr input	6 (SFP)	8 (DB9)
MB5908A-6SFP-TB CT		Industrial 8-Port Modbus Concentrator, Terminal Block, RS-232/422/485, SFP, dual pwr input	6 (SFP)	8 (TB5)
MB5908A-6SFP-Sis CT		Industrial 8-Port Modbus Concentrator, Terminal Block, RS-232/422/485, 3kV Isolation, SFP, dual pwr	6 (SFP)	8 (TB5)
MB5908A-HV CT		Industrial 8-Port Modbus Concentrator, DB9(M), RS- 232/422/485, RJ45, dual pwr input	6 (RJ45)	16(DB9)
MB5908A-TB-HV CT		Industrial 8-Port Modbus Concentrator, Terminal Block, RS-232/422/485, RJ45, dual pwr input	6 (RJ45)	16(TB5)
MB5908A-Sis-HV CT		Block, RS-232/422/485, 3kV Isolation, RJ45, dual	6 (RJ45)	16(TB5)
MB5908A-6SFP-HV CT		Industrial 16-Port Modbus Concentrator, DB9(M), RS-232/422/485, SFP, dual pwr input	6 (SFP)	16 (DB9)
MB5908A-6SFP-TB-HV CT		Industrial 16-Port Modbus Concentrator, Terminal Block, RS-232/422/485, SFP, dual pwr input	6 (SFP)	16 (TB5)
MB5908A-6SFP-Sis-HV CT		Industrial 16-Port Modbus Concentrator, Terminal Block, RS-232/422/485, 3kV Isolation, SFP, dual pwr	6 (SFP)	16 (TB5)

MODEL NAME	PART NUMBER	DESCRIPTION
SDR-75-24	50500752240001G	75W/3.2A DIN-Rail 24VDC power supply with 88~264VAC / 124~370VDC input
CBL-RJ45(8P)-DB9(F)-90-C	50891971G	8-pin RJ45-DB9 debug cable, 90cm
GDC-120	59906861G	120mm copper woven grounding cable
ADP-DB9(F)-TB5	59906231G	Female DB9 to Female 3.81 TB5 Converter
AXFD-1314-0523	522AXFD1314001G	SFP Transceiver;155Mbps, Multi-mode;1310nm;2km;-40~85, DDMI
AXFD-1314-0553	522AXFD1314011G	SFP Transceiver;155Mbps, Single-mode;1310nm;30km;-40~85, DDMI
