AXXE-5886-05B3
10 Gigabit Ethernet Series: 10000 Mbps, 850 nm, Multi-mode, 300m
- 10000 Mbps data rate
- 850 nm wavelenght
- Multi-mode
- -7.3 dBm Tx Power
- -11.1 Max dBm Rx Sens.
- 3.8 dBm Link budget
- 300 m distance
- Operating temperature from -40° to 85° C
- UL/TUV certified
| 10 Gigabit Ehtrnet Series | ||
|---|---|---|
| MODEL NAME | PART NUMBER | DESCRIPTION |
| AXXE-5886-05B3 | 522AXXE5886001G | 10Gbps, Multi-mode, 850nm, 300m, -40°C to +85°C |

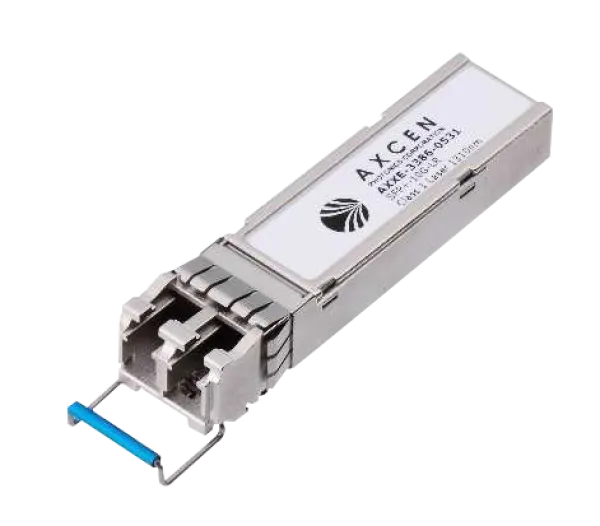

| AXXE-3386-0533 | 522AXXE3386001G | 10Gbps, Single-mode, 1310nm, 10km, -40°C to +85°C |
| AXXE-3386-0583 | 522AXXE3386011G | 10Gbps, Single-mode, 1310nm, 20km, -40°C to +85°C |
