Providing connectivity for the Internet of Things
ATOP’s Industrial Embedded Computer is your ideal flexible Gateway to the Internet of Things. It provides Serial and Ethernet connectivity in a reliable and powerful Industrial Grade platform that can unlock your potential. Based on your specific application, it allowing almost any serial device to be connected, providing and retrieving the data you need to and from the cloud, no matter what provider you’re using.

Programmability
Write your customized application in C language and Run it on its powerful Industrial low-power 800MHz ARM Cortex A8 TI Sitara AM3354 CPU. Make flexible use of your peripherals, no matter storage, Serial, or USB are needed. SE5901 is available as a SDK/BSP. The SDK development environment reserves the maximum flexibility. Bottom to top editable software architecture allowed easily to customize or add the IoT applications for different using scenarios. Included Linux kernel source extend the capability of the kernel layer. Changeable WEB pages allowed to easily customize proprietary style. With the SE5901, it will extend your possibility while building your IoT applications.

Rugged and flexible for advanced developments
SE5901 embeds high EMC protection, wide temperature operation, programming and installation flexibility in one device. A dedicated PoE version allows you to power the device through Power over Ethernet (IEEE 802.3af) technology, without the need of a separate space consuming power supply.

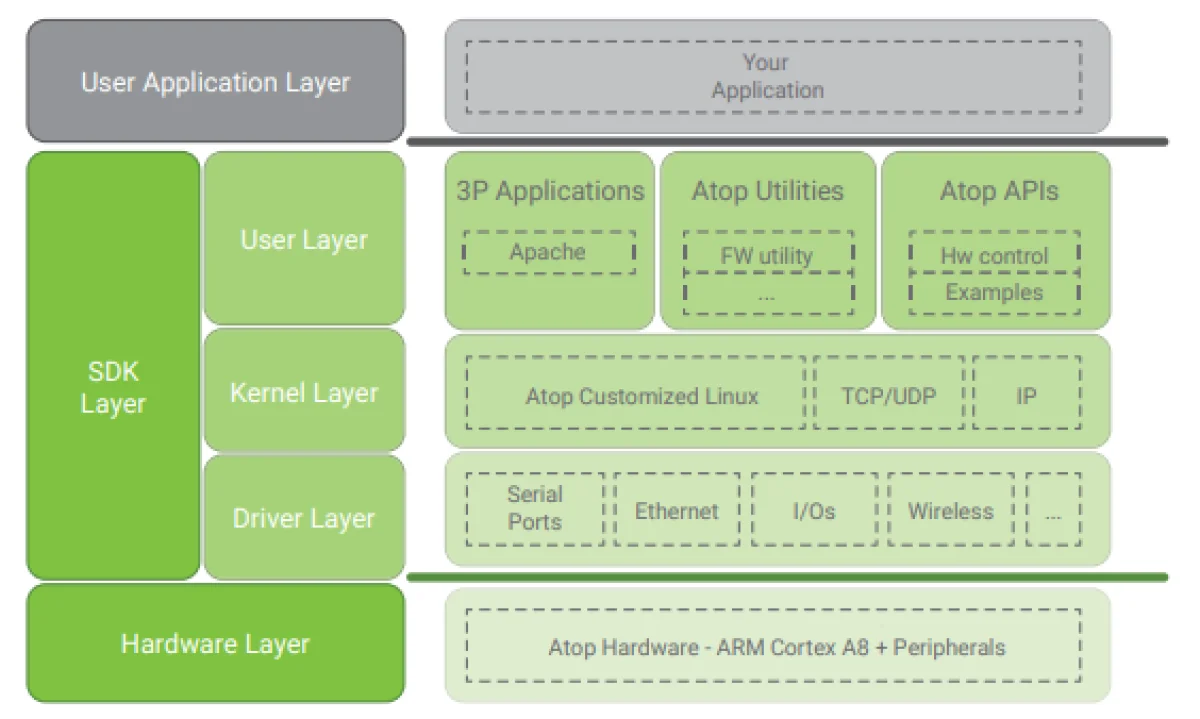

SE5901 (SDK) block diagram   Application

The IoT (Internet of Things) or IIoT (Industrial Internet of Things) is a trending topic these days. It’s all about bringing devices, sensors, actuators, data and commands to the cloud, with the ultimate goal to improve the quality of life, the services Smart Cities can offer, saving energy or saving money. This requires two things: to vehiculate the collected data to the cloud in a format that can be recognized and processed and to process, compute and analyze all this amount of data in real time. It is not a concept far from reality. Imagine you’d like to bridge a Modbus Sensor to the cloud. And you’d like to have the application running on the cloud to be able to process multiple sensors’ data, and to trigger some event in some specific stations along the network. You may also have the need to override the cloud control and manage the application locally. Any application has its story. Here at ATOP, we understand these different needs and we are providing you different working models, based on what your needs are.

Use the Standard SDK, programmable embedded computer if:

• You are familiar with Linux OS
• You have ANSI C programming skills
• Your application is strictly time/ performance sensitive
• Your application has very critical exception handling requirements

Our SDK products provide:

• Ported, proven and tested peripherals (such as I/Os, Ethernet, Serial, Relays) and integrated drivers
• ATOP customized Linux Kernel and network protocols
• Ported, debugged and proven third party applications
• Utilities and APIs to control the hardware in an easy  and effective way
• Opened software architecture to create your own system image
• Linux source code to extend the kernel capability
• Modifiable WEB contents to customize proprietary WEB style
• Example of source code



Hardware Specifications
CPU	Texas Instruments Sitara ARM Cortex A8 AM3354 800MHz
Flash	64 MB NOR Flash
RAM	SDK version: 256 MB DDR2
EEPROM	24LC64
Watchdog	ADM706
Real Time Clock (RTC)	Yes - with external chip
Buzzer	Yes
Console port	Yes - on-board connector
Reset Button	Yes

Network Interface
Standards	IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X)
Ethernet Ports	2x 10/100BASE-TX RJ-45
Power over Ethernet	IEEE 802.3af on LAN2 (PoE version only)

Serial Interface
Connector	D-Sub9 RS-232/485 software selectable (DB model) 5-Pin 5.08mm Terminal Block
Ports	1 port RS-232/422/485 (2 and 4-wire)
Serial Console	1x Serial Console port (RJ45)
Serial Port Isolation	3 kV (SiS version only)
Pull-high / Pull-low /Term. resistors	Selectable by DIP switch
Baud Rate	50 ~ 921,600bps
Data Bits	7, 8
Stop Bits	1, 2
Flow Control	None, Xon/Xoff, RTS/CTS (RS-232 only)

Other interfaces
USB ports	1 x USB A Type (USB 2.0) - High-Speed OTG + power
LCM Matrix	Programmable LCM Matrix with 5-buttons
SD Card	SD card slot (internal)

Software
Bootloader	U-boot 2014.07
Linux kernel	Linux 3.14.26
Linux toolchain	Linux 32 bits toolchain gcc (C/C++ PC cross compiler), glibc
Linux sample code	RS232, RS485, RTC, watchdog, LED, Buzzer, Button, network socket

Power
Input Voltage	9~48 VDC 24 VAC
Power Redundancy	Yes, 2 independent power inputs
Relay Output	1x 1A@30VDC (Normal open)
Connector	3-Pin 5.08mm Lockable Terminal Block
Power Consumption	0.65A @ 9VDC (6 W Max)
Input Current	DC version: 0.54 A @24VDC; US-EU version: 0.21A@100VAC
Reverse Polarity Protection	Yes

Environmental
Operating Temperature	-40°C~85°C (-40°F~185°F)
Storage Temperature	-40°C~85°C (-40°F~185°F)
Ambient Relative Humidity	5%~95%, (Non-condensing)

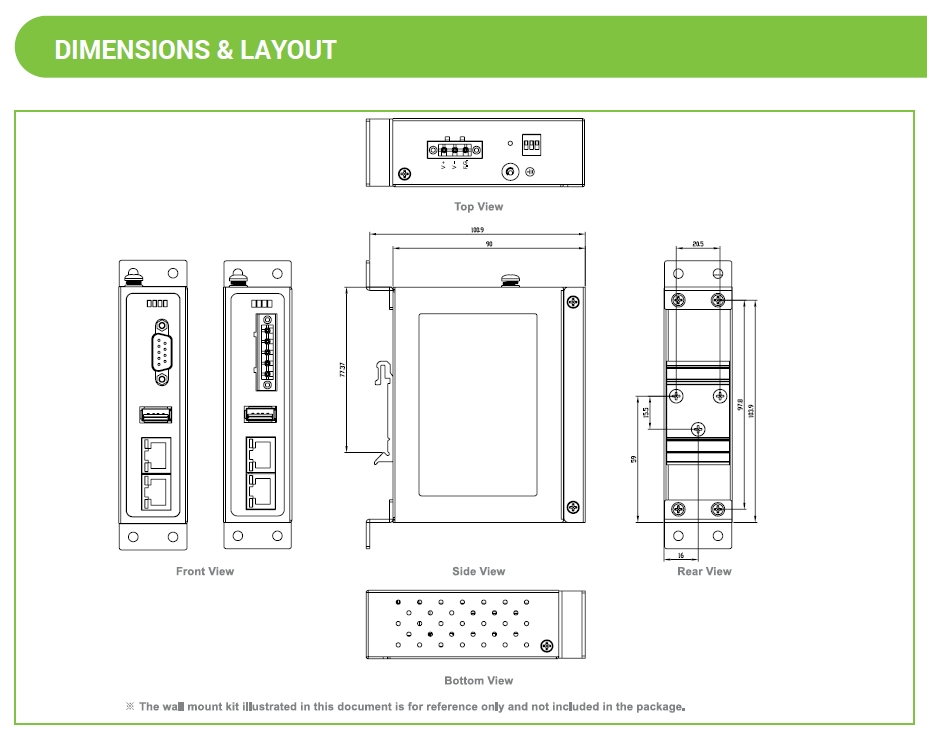

Mechanical
Housing	IP30 protection, SPCC metal housing
Dimensions(W x H x D)	32 x 110 x 90 mm (1.26 x 4.33 x 3.54 in)
Installation	DIN-Rail or Wall-Mount (optional kit)
Weight	400g
Reset Button	Yes

Certification	Standard
Safety	EN60950-1:2006; EN62368-1
EMC/Radio	FCC Part 15, Subpart B, Class A EN 55032, EN 55024, EN 61000-3-2, EN 61000-3-3, EN 61000-6-2, EN 61000-6-4
RoHS 2	Yes

Standard	Item	Test	Value	Level
IEC 61000-4-2	ESD	Contact Discharge	±8KV	4
IEC 61000-4-2	ESD	Air Discharge	±15KV	4
IEC 61000-4-3	RS	Radiated (enclosure)	10 V/m	3
IEC 61000-4-4	EFT	AC Power Port	±2.0KV	3
IEC 61000-4-4	EFT	DC Power Port	±2.0KV	3
IEC 61000-4-4	EFT	Signal Port	±2.0KV	3
IEC 61000-4-5	Surge	AC Power Port	Line-to Line±1.0KV	3
IEC 61000-4-5	Surge	AC Power Port	Line-to Earth±2.0KV	3
IEC 61000-4-5	Surge	DC Power Port	Line-to Line±1.0KV	3
IEC 61000-4-5	Surge	DC Power Port	Line-to Earth±2.0KV	3
IEC 61000-4-5	Surge	Signal Port	Line-to Earth±2.0KV	3
IEC 61000-4-6	CS	Conducted (enclosure)	10 Vrms	3
IEC 61000-4-8	PFMF	Enclosure	30 A/m	3
IEC 61000-4-11	DIP	Power Port	-	A

Certification	Standard
Shock	IEC 60068-2-27
Drop	IEC 60068-2-32
Vibration	IEC 60068-2-6
Warranty	5 Years
MTBF	21.16 years (MIL-HDBK-217F-based prediction)

MODEL NAME	PART NUMBER	DESCRIPTION	ETHERNET PORTS	SERIAL PORTS
SE5901-DB	Contact Headquarter	1-port RS-232/422/485 Ind. Serial Device Server, DB9	2 (RJ45)	1 (DB9)
SE5901-TB	Contact Headquarter	1-port RS-232/422/485 Ind. Serial Device Server, TB5	2 (RJ45)	1 (TB5)
SE5901-PoE-DB	Contact Headquarter	1-port RS-232/422/485 Ind. Serial Server, DB9,PoE Pwrd	2 (RJ45)	1 (TB5)
SE5901-PoE-TB	Contact Headquarter	1-port RS-232/422/485 Ind. Serial Server, TB,PoE Pwrd
Please note the following suffixes to be added to he chosen model name: SDK version: (SDK)			2	1

MODEL NAME	PART NUMBER	DESCRIPTION
UN315-1212 (US-Y)	50500151120003G	Y-Type power adaptor, 100~240VAC input, 1.25A @ 12VDC output, US plug, LV6
UNE315-1212 (EU-Y)	50500151120013G	Y-Type power adaptor, 100~240VAC input, 1.25A @ 12VDC output, EU plug, LV6
ADP-DB9(F)-TB5	59906231G	Female DB9 to Female 3.81 TB5 Converter
GDC-120	59906861G	120mm copper woven grounding cable
WMK-315-Black	70100000000050G	Black Aluminum Wall Mount Kit
LM28-C3S-TI-N	50708031G	SFP Transceiver, 1250Mbps, 850nmVCSEL, Multi-mode, 550m, 3.3V, -20~85°C
LM38-C3S-TI-N	50709411G	SFP Transceiver, 1250Mbps, 1310nmFP, Multi-mode, 2km, 3.3V, -40~85°C
LS38-C3S-TI-N	50709391G	SFP Transceiver, 1250Mbps, 1310nmFP, Single-mode, 10km, 3.3V, -40~85°C
LS38-C3L-TI-N	50709441G	SFP Transceiver, 1250Mbps, 1310nmDFB, Single-mode, 30km, 3.3V, -40~85°C

Datasheet

VERSION	NAME	TIME	SIZE	DOWNLOAD
v0.8	Datasheet EN	2023-11-01	246.92 KB
v0.7	Datasheet EN	2022-11-04	287.84 KB
v0.6	Datasheet EN	2021-03-26	406.60 KB
v0.3	Datasheet EN	2018-08-24	576.18 KB
v0.2	Datasheet EN	2017-11-10	584.24 KB
4 older versions

Hardware Installation Guide

VERSION	NAME	TIME	SIZE	DOWNLOAD
v2.0	SE5901/MB5901/PG5901 Hardware Installation Guide	2024-06-01	4.51 MB
v1.1	SE5901/MB5901/PG5901 Hardware Installation Guide	2015-07-15	921.06 KB
1 older version

Manual

VERSION	NAME	TIME	SIZE	DOWNLOAD
v0.1	AWS getting started guide	2021-08-19	907.53 KB
v0.5	SE59XX SDK User Manual	2021-04-13	2.55 MB
v0.4	SE59XX SDK User Manual	2019-09-10	2.55 MB
v1.2	SE59XX SDK User Manual	2018-05-02	2.25 MB
v1.1	SE59XX SDK User Manual	2018-02-05	2.41 MB
3 older versions
v1.4	SE59XX Node-RED User Manual	2019-04-22	5.72 MB
v1.2	SE59XX Node-RED User Manual	2018-08-24	5.59 MB
1 older version

Firmware

VERSION	NAME	TIME	SIZE	DOWNLOAD
v2.01	SE5901 SDK Firmware	2021-03-26	11.06 MB

Utility

VERSION	NAME	TIME	SIZE	DOWNLOAD
v1.0	Linux Driver_x64	2021-03-29	210.16 KB

STP/DXF drawings

VERSION	NAME	TIME	SIZE	DOWNLOAD
v1.0	STP File PG-SE-MB5901	2022-07-07	5.20 MB
