SE5901B Series

3G/4G LTE Cellular to Ethernet and Serial Secure Industrial Gateway/ Router

4G LTE Cellular to Ethernet and Serial Secure Industrial Gateway

  • LTE Band Support - EU: 2100/1800/850/2600/900/800MHz (B1/B3/B5/B7/B8/B20) - US: 1900/1700/850/700/600 MHz (B2/B4/B5/B12/B13/B14/B66/B71)
  • VPN over IPsec, OpenVPN or PPTP, data-rate up to 37.9Mbps*
  • Wide temperature, industrial grade platform
  • 1 x 10/100/1000Mbps Ethernet port
  • 1-port RS-232/485, baud rate up to 921.6 Kbps
  • Integrated Firewall, DMZ, Port Forwarding, DDNS, ICMP Ping
  • TCP Server/Client, UDP, Virtual COM supported
  • 2 Digital Inputs/ 2 Digital outputs in I/O version
  • Additional embedded power-bank for fault-relay capability (B version)

Providing connectivity for the Internet of Things
SE5901B, ATOP’s Industrial Serial to Ethernet and Cellular Gateway/Router is a high-performance, cost effective gateway for serial signal communications; allowing almost any serial device to be connected to Ethernet network and providing connectivity to the world and at the same time protecting your network from intrusions. Its powerful CPU provides up to 37.9Mbps* software-assisted AES encryption for protecting your data flow through the Internet with a secure IPsec VPN tunnel.

Advanced features available
Flexible configuration options enable this unit to be set up over Ethernet by Telnet, Web Browser, or our Windows Utility. A dedicated I/O version provides 2 digital inputs and 2 digital outputs, a GPS version provides Global Positioning System geolocation, and    specifically for the Internet of Things, a "B” version provides additional 15 seconds power during a power failure, allowing the device to relay back to the host the failure. This is Maintenance 4.0.

Rugged and flexible for advanced developments
SE5901B embeds high EMC protection, wide temperature operation, programming and installation flexibility in one device. SDK versions allow you to make use of the powerful hardware and develop your own applications on top of ATOP’s reliable APIs and with plenty of coding examples in ATOP’s SDK. SDK versions are available upon request. Please contact ATOP’s representative for additional information.

*test carried out with one VPN-IPsec Tunnel, Peer-to-Peer mode, Ethernet cable. Performance can change based on the Cellular Network.
Wireless Interface
Standard WCDMA/ DC-HSPA+/ LTE
Antennas/ SIM card 1 (3G) or 2 (4G) - Included. Internal SIM card slot (x1)
Band Options Version Standard Bands
EU LTE-FDD 2100/1800/850/2600/900/800MHz (B1/B3/B5/B7/B8/B20)
LTE-TDD 2600/2300/2500MHz (B38/B40/B41)
WCDMA 2100/850/900MHz (B1/B5/B8)
US LTE-FDD 1900/1700/850/700/600bMHz (B2/B4/B5/B12/B13/B14/B66/B71)
WCDMA 1900/1700/850MHz (B2/B4/B5)
JP LTE-FDD 2100/1800/900/850 MHz (B1/B3/B8/ B18/B19/B26)
LTE-TDD 2500(B41)
WCDMA 2100/800/900/800 (B1/B6/B8/B19)
LA LTE-FDD 2100/1900/1800/1700/850/2600/900/ 700 MHz (B1/B2/B3/B4/B5/B7/B8/B28)
LTE-TDD 2300 MHz (B40)
WCDMA 2100/1900/850/900 MHz (B1/B2/B5/B8)
Data Rate Version Standard Downlink Speed Uplink Speed
EU LTE-FDD 150 Mbps 50 Mbps
LTE-TDD 130 Mbps 30 Mbps
DC-HSPA+ 42 Mbps 5.76 Mbps
WCDMA 384 Kbps 384 Kbps
US LTE-FDD 150 Mbps 50 Mbps
DC-HSPA+ 42 Mbps 5.76 Mbps
WCDMA 384 Kbps 384 Kbps
JP LTE-FDD 150 Mbps 50 Mbps
LTE-TDD 130 Mbps 30 Mbps
DC-HSPA+ 42 Mbps 5.76 Mbps
WCDMA 384 kbps 384 Kbps
LA LTE-FDD 150 Mbps 50 Mbps
LTE-TDD 130 Mbps 30 Mbps
DC-HSPA+ 42 Mbps 5.76 Mbps
WCDMA 384 kbps 384 Kbps
Network Interface
Speed IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT(X)
Connector ports 1x 10/100/1000BASE-TX RJ-45
Serial Interface
Connector D-Sub9 RS-232/485 software selectable (DB model) 14-Pin 5.08mm Terminal Block (integrated with DI/DOs)
Ports 1 port RS-232/485 (2-wire) software selectable 1 port RS-232 (IO model only)
Baud Rate 1,200 to 921,600bps software selectable
Data Bits 7, 8 software selectable
Stop Bits 1, 2 software selectable
Flow Control None, Xon/Xoff, RTS/CTS (RS-232 only)
GNSS Interfaces
Supported GNSS GPS, Glonass, Beidou
Connector 1x SMA
Other Interfaces
USB Ports 2
USB Speed 1 x USB 2.0 High Speed OTG; 1x USB power only
USB Connector USB A Type
Digital Inputs (DI) 2 x channels photo coupler isolated digital input
Digital Outputs (DO) 2 x digital relay outputs. N.O.( 2A@24VDC)
Software
Serial Server-related VirtualCOM (Serial/IP), Virtual Server (port Forwarding)
Security IPsec, PPTP or OpenVPN VPN tunneling. Max VPN throughput 37.9Mbps *; SMTP/TLS, Firewall, DMZ
Network ARP, IPv4, DHCP Client, ICMP, TCP, UDP, HTTP, RFC2217,TELNET, NTP Client, NAT, Port Forwarding, ICMP Ping, DDNS
Management Web, ATOP Device Management Utility, SNMPv1/v2c/v3, SMS
Configuration Embedded Web-Server (Web UI), TELNET, Atop Device Management Utility
Power Value
Input Voltage 9 - 48 VDC
Connector 3-Pin 5.08mm Lockable Terminal Block
Power Consumption 0.65A@12 VDC (Approx. 7.8W)
Power Redundancy USB DC 5V Power Input
Reverse Polarity Protection Yes
Physical Characteristics Value
Housing IP30 protection, SPCC metal housing
Dimension (W x H x D) 32mm x 122mm x 92mm
Weight 400g
Installation DIN-Rail , Wall mount (optional kit)
Reset Button Yes
Environmental Limits
Operating Temperature -40°C~70°C (-40°F~158°F)
Storage Temperature -40°C~85°C (-40°F~185°F)
Ambient Relative Humidity 5% to 95% (non-condensing)
Certification Standard
Safety CB (IEC/EN62368-1 & IEC/EN60950-1), UL60950-1
EMC/Radio FCC 47 CFR PART 22H, FCC 47 CFR PART 24H, FCC PART 27L, FCC Part 15B, EN301489-1, EN301489-7, EN301489-19, EN301489-24, EN301489-52, EN301511, EN301908-1, EN303413, ETSI EN300440-1/-2 EN55032,EN55024, EN61000-6-2, EN61000-6-4
Standard Item Test Value Level
IEC 61000-4-2 ESD Contact Discharge Air Discharge ±6KV ±8KV 3
IEC 61000-4-3 RS Enclosure Port 10(V/m), 80-1000MHz 3
IEC 61000-4-4 EFT DC Power Port Signal Port ±2.0KV ±1.0KV 3 3
IEC 61000-4-5 Surge DC Power Port DC Power Port Signal Port Line-to Line±1.0KV Line-to Earth±2.0KV Line-to Earth±2.0KV 3 3 3
IEC 61000-4-6 CS 0.15-80MHz 10V rms 3
IEC 61000-4-8 PFMF (Enclosure) AC 50Hz 30A/m 3
Certification Standard
Shock MIL-STD-810G Method 516.7
Drop MIL-STD-810G Method 516.7
Vibration MIL-STD-810G Method 514.7
RoHS Yes
MTBF 20.88 years according to MIL-HDBK-217F (Model average)
Warranty 5 Years

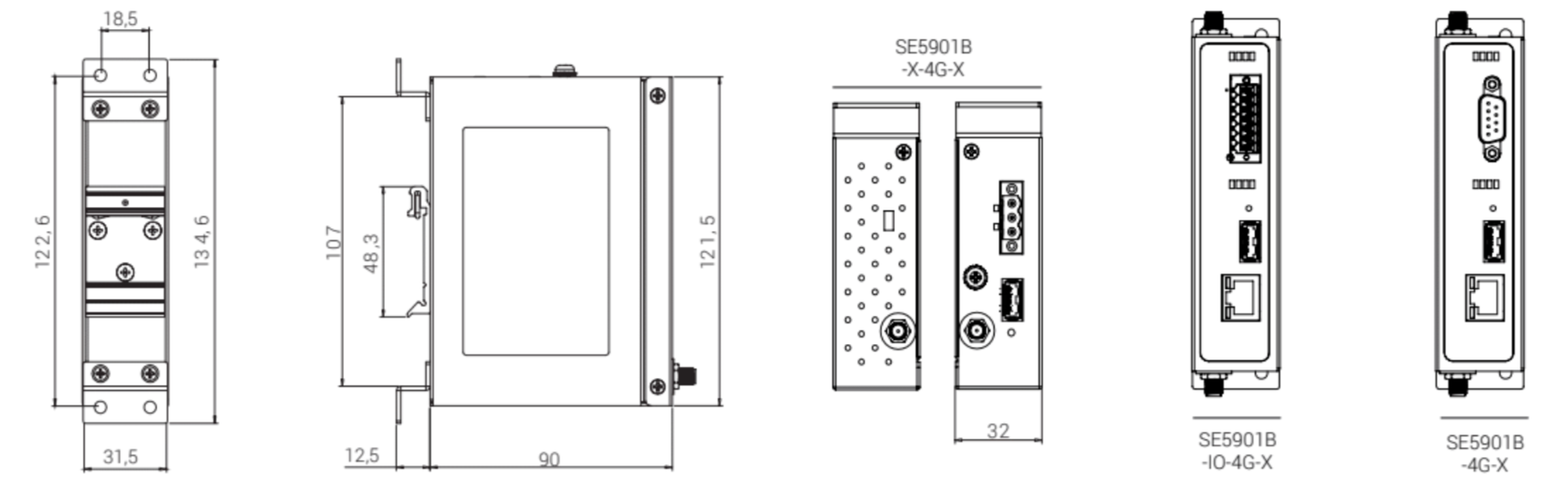

DIMENSIONS & LAYOUT

Drawing
MODEL NAME Part number CELLULAR SERIAL PORTS I/O OTHER
SE5901B-4G-US 1P1SE5901B4G03G 4G (US) 1 (DB9) - -
SE5901B-IO-4G-US 1P1SE5901BIO04G 4G (US) 1 (TB) +1 RS232 2/2 -
SE5901B-IO-4G-GPS-US 1P1SE5901BIO06G 4G (US) 1 (TB) +1 RS232 2/2 GPS
SE5901B-4G-B-US 1P1SE5901B4G04G 4G (US) 1 (DB9) - Battery
SE5901B-IO-4G-B-US 1P1SE5901BIO05G 4G (US) 1 (TB) +1 RS232 2/2 Battery
SE5901B-IO-4G-GPS-B-US 1P1SE5901BIO07G 4G (US) 1 (TB) +1 RS232 2/2 GPS - Battery
SE5901B-4G-EU 1P1SE5901B4G13G 4G (EU) 1 (DB9) - -
SE5901B-IO-4G-EU 1P1SE5901BIO14G 4G (EU) 1 (TB) +1 RS232 2/2 -
SE5901B-IO-4G-GPS-EU 1P1SE5901BIO16G 4G (EU) 1 (TB) +1 RS232 2/2 GPS
SE5901B-4G-B-EU 1P1SE5901B4G14G 4G (EU) 1 (DB9) - Battery
SE5901B-IO-4G-B-EU 1P1SE5901BIO15G 4G (EU) 1 (TB) +1 RS232 2/2 Battery
SE5901B-IO-4G-GPS-B-EU 1P1SE5901BIO17G 4G (EU) 1 (TB) +1 RS232 2/2 GPS - Battery
SE5901B-IO-4G-GPS-B-US (for Marine) 1P1SE5901BIO0TG 4G (US) 1 (TB) +1 RS232 2/2 GPS - Battery
SE5901B-4G-B-US (for Marine) 1P1SE5901B4G0CG 4G (US) 1 (DB9) - Battery
SE5901B-4G-JP Contact Headquarters 4G (JP) 1 (DB9) - -
SE5901B-IO-4G-JP Contact Headquarters 4G (JP) 1 (TB) +1 RS232 2/2 -
SE5901B-IO-4G-GPS-JP Contact Headquarters 4G (JP) 1 (TB) +1 RS232 2/2 GPS
SE5901B-4G-LA Contact Headquarters 4G (LA) 1(DB9) - -
MODEL NAME PART NUMBER DESCRIPTION
UN315-1212(US-Y) LV6 50500151120003G Y-Type (5.08 mm) adaptor, 100-240VAC input, 1.25A @ 12VDC output, US plug
UNE315-1212(EU-Y)LV6 50500151120013G Y-Type (5.08 mm) adaptor, 100-240VAC input, 1.25A @ 12VDC output, EU plug
ADP-DB9(F)-TB5 59906231G Female DB9 to Female 3.81mm TB5 Converter
WMK-315-Black 70100000000050G Black Aluminum Wall Mount Kit
