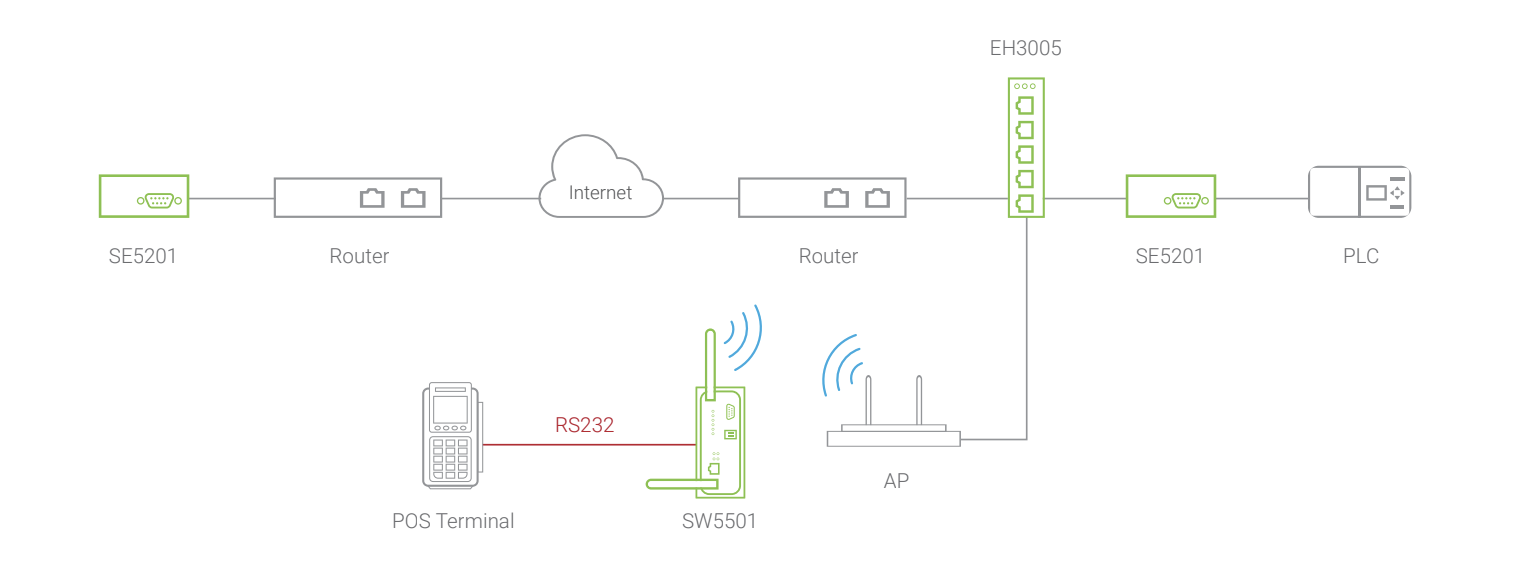

EH3005 is a slim, entry-level unmanaged switch with 5 RJ-45 ports and strict QoS packet prioritization according to 802.1p. Designed for industrial and especially for hazardous locations, it fits into small spaces in cabinets or between walls, and complies with CE, FCC and UL standards, while featuring polycarbonate housing for cost efficiency. Redundant power inputs allow simultaneous connection to wide-range DC power sources, so in case one of the power inputs fail, the other live source automatically acts as a backup to provide power.

Switch Properties
Processing Scheme	Store-and-Forward
MAC Table Size	1K
Packet Buffer	448Kb

Ethernet
Compliance	IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-T(X) and 100Base-FX IEEE 802.3x for Flow Control, back pressure flow control IEEE 802.1q/p for VLAN Tagging and Class of Service IEEE 802.3az for Energy Efficient Ethernet
Auto MDI/MDI-X	Yes

Power
Dual Input Voltage	12 - 48 VDC
Input Current	0.5 A max.
Power Consumption	6 W max.
Reverse Polarity Protection	Present
Connection	Lockable 5-pin terminal blocks for power input

Physical Characteristics
Housing	IP30 protection, Plastic, Black

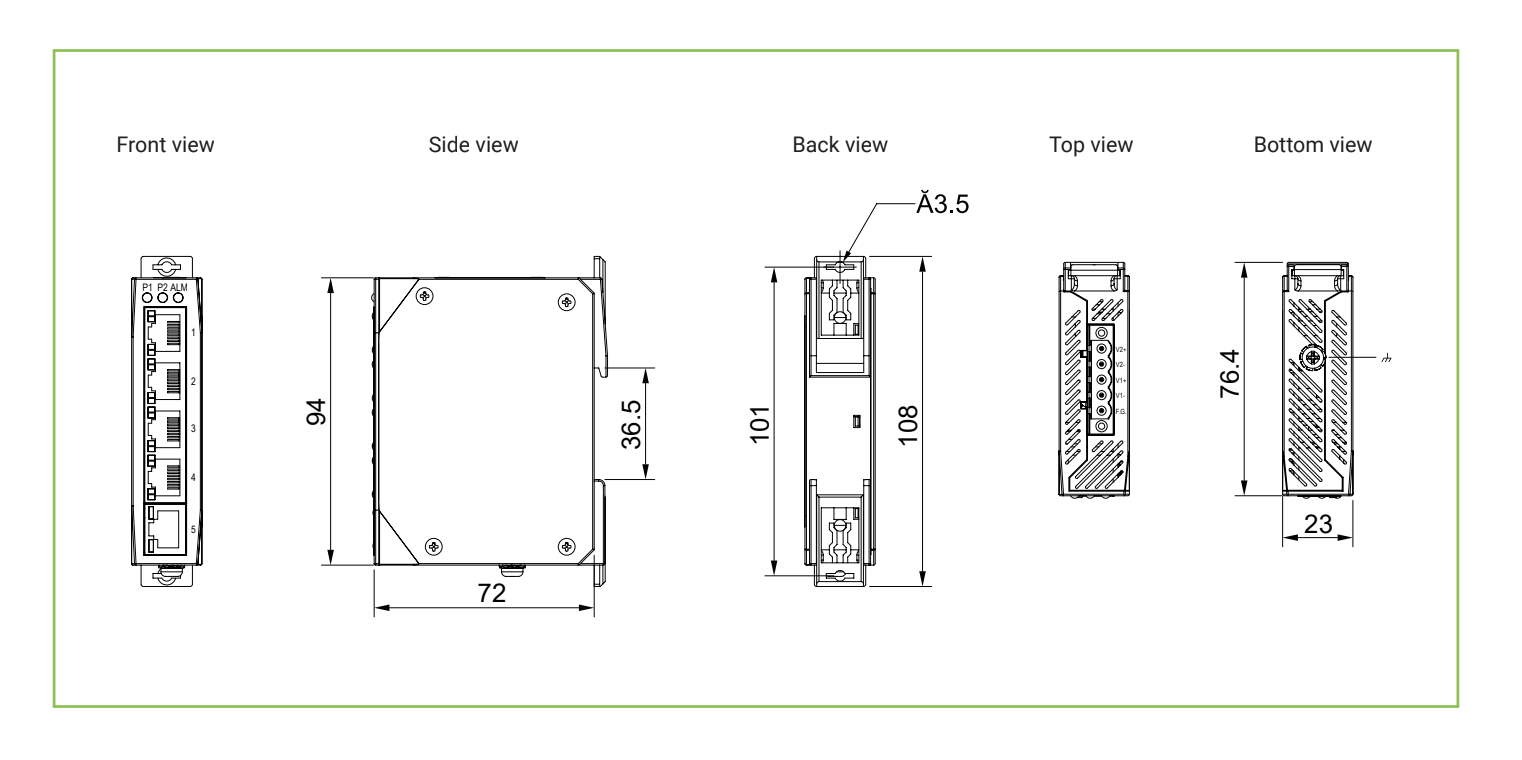

Dimension (W x H x D)	Slim type, 23mm x 94mm x 72mm
Weight	150g
Installation	DIN-Rail mounting
LED Indicators	PWR1, PWR2, Alarm, ALM, LAN

Environmental Limits
Operating Temperature	0°C to 60°C (32°F to 140°F)
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
Ambient Relative Humidity	5 to 95%, 55°C (non-condensing)

Regulatory Approvals
Safety	UL/IEC/EN 62368-1, IEC(CB) 60950-1
FCC(EMI)	FCC Part 15, Subpart B, Class A
CE(EMI)	EN 55032:2015/AC:2016 EN 61000-3-2: 2014, Class A EN 61000-3-3: 2013 EN 61000-6-4: 2007 + A1: 2011
CE(EMS)	EN 55024: 2010 + A1:2015 EN 61000-6-2: 2005 + AC: 2005

Test	Version		Item	Value	Level	Criterion
IEC 61000-4-2	2008	ESD	Contact Discharge Air Discharge	±6KV ±8KV	3 3	B B
IEC 61000-4-3	2010	RS	80-1000MHz	10 (V/m)	3	A
IEC 61000-4-4	2012	EFT	DC Power Port LAN Port	±2.0KV ±2.0KV	3 4	B B
IEC 61000-4-5	2014	Surge	DC Power Port DC Power Port LAN Port	Line-to Line±0.5KV Line-to Earth±0.5KV Line-to Earth±2.0KV	3 3 3	B B B
IEC 61000-4-6	2013	CS	0.15-80MHz	10 Vrms	3	A
IEC 61000-4-8	2009	PFMF	Enclosure	AC 50Hz 30A/m	4	A

Certification
Noise Immunity	Simulator noise 500 Vp-p, noise width: 1 μs by noise simulator of 25 to 60 Hz in noise frequency
RoHS	YES
MTBF	20 years (TBD)
Warranty	5 years

Model name	Part Number	Enclosure	RJ45 ports
EH3005	1P1EH300500001G	Plastic	5

Optional Accessories

Model name	Part Number	Description
