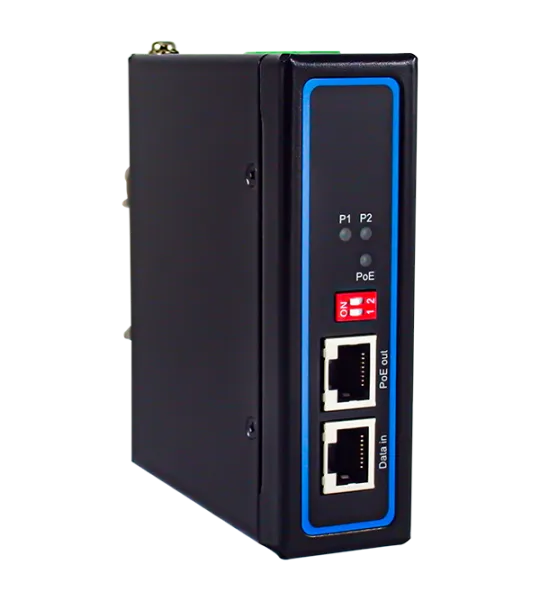

Multi-Protocol support Power over Ethernet is a convenient tool to simplify industrial network and IoT setups, and is now widely utilized in end devices such as wireless APs or IP cameras. The IJG7001 PoE injector supports IEEE 802.3at (PoE+) as well as the legacy IEEE 802.3af (PoE), so you can provide PoE power to virtually any device. Mode A and Mode B selection IJG7001 supports both Mode A and Mode B for 802.3af/at. Say goodbye to the hassle of finding the model type you need, and simply adjust IJG7001’s DIP-Switch setting according to your device. Durable hardware With strong EMC protection and a wide operating range, IJG7001 can be installed on machine-side to reduce the cost of power supply equipment and thus the overall cost of ownership.

Ethernet	Standard	-
Compliance	IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT(X) IEEE 802.3af for Power-over-Ethernet (PoE - max 15.4W) IEEE 802.3at for Power-over-Ethernet (PoE+ - max 30.0W)
PoE modes	Mode A/ Mode B DIP-Switch selectable Mode A: PoE power through data pins (1,2,3,6) Mode B: PoE power through spare pins (4,5,7,8)
RJ 45 Transmission Rate	10/100/1000 Mbps
Auto MDI/MDI-X	Yes

Power	Value
PoE Voltage Booster	Yes (Max support 30W)
Input Voltage	12 (power limitations)
Input Current	Max 3.6A @12VDC
Max. Power Consumption	30W

LED	Value
Indicators	P1, P2, PoE

Physical Characteristics	Value
Housing	IP30 metal housing

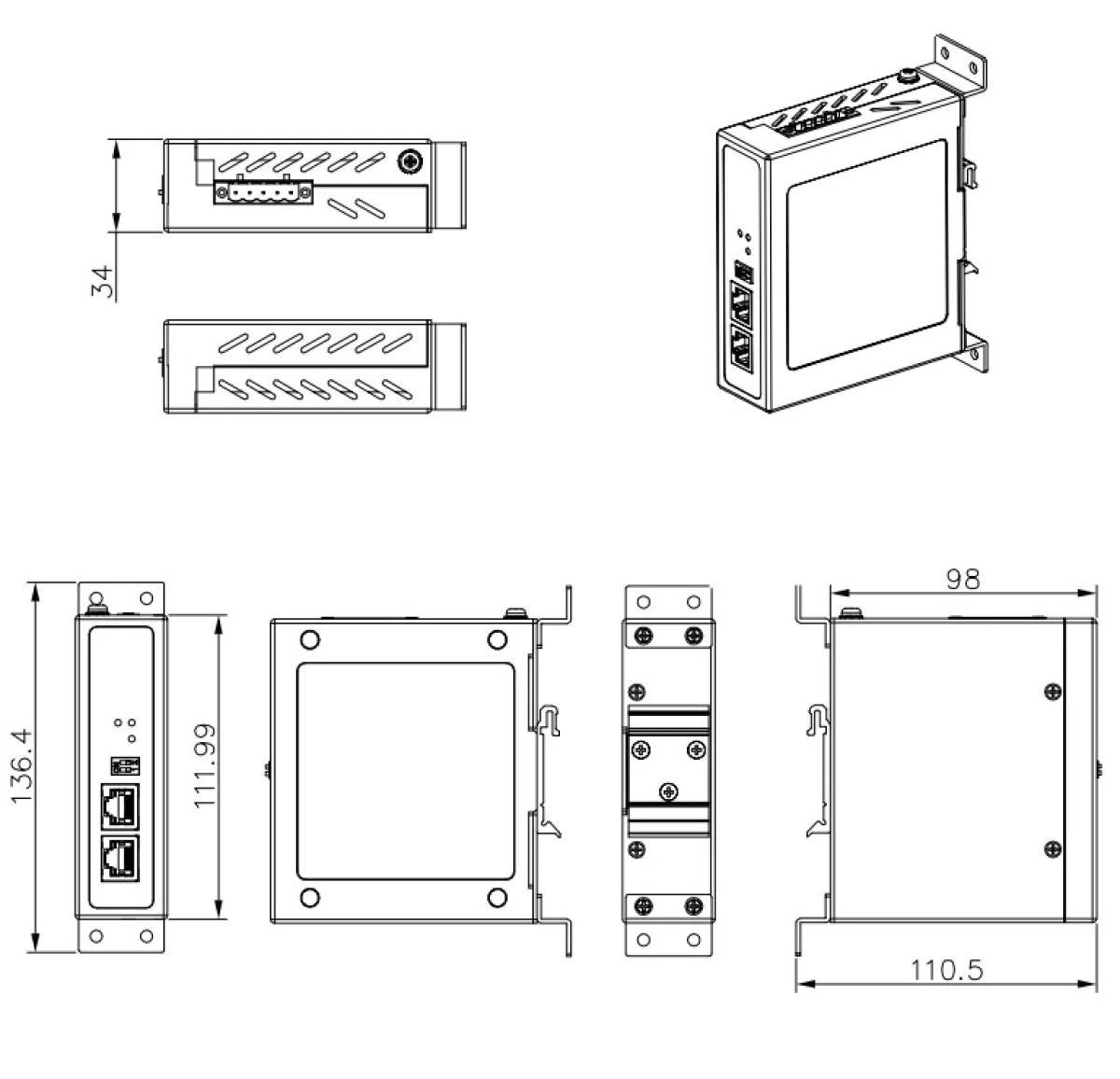

Dimension (W x H x D)	32 x 110 x 90 mm
Weight	340 g
Installation	DIN-Rail, Wall mount (optional kit)

Environmental Limits	Value
Operating Temperature	-40°C to +75°C (-40°F to +167°F)
Storage Temperature	-40°C to +85°C (-40°F to +185°F)
Ambient Relative Humidity	5% to 95% (Non-condensing test @55°C)

CERTIFICATION	STANDARD
Safety	EN60950-1, EN62368-1
EMC	FCC Part 15, Subpart B, Class A EN 55032:2015 +AC:2016 Class A, EN 61000-3-2: 2014, Class A, EN 61000-3-3: 2013, EN 61000-6-4: 2007+ A1: 2001 EN 55024: 2010+ A1:2015, EN 61000-6-2:2005+ AC : 2005

STANDARD	ITEM	TEST POINT	VALUE	LEVEL
IEC 61000-4-2	ESD	Contact Discharge Air Discharge	±6kV ±8kV	3 3
IEC 61000-4-3	RS	80-1000MHz 1. 4-2.0GHz 2. 0-2.7GHz	10(V/m) 3(V/m) 10(V/m)	3 3 3
IEC 61000-4-4	EFT	DC Power Port Signal Port	±4.0KV ±2.0KV	4 4
IEC 61000-4-5	Surge	DC Power Port DC Power Port Signal Port	Line-to Line±2.0kV Line-to Earth±4.0kV Line-to Earth±3.0kV	4 4 3
IEC 61000-4-6	CS	0.15-80MHz	10 V rms	3
IEC 61000-4-8	PFMF	Enclosure	10 A/m	3
IEC 61000-4-11	DIP	AC Power Port	-	A

CERTIFICATION	STANDARD
Shock	MIL-STD-810F Method 516.5
Drop	MIL-STD-810F Method 516.5
Vibration	MIL-STD-810F Method 514.5 C-1 & C-2
RoHS	Yes
MTBF	72.23 years
Warranty	5 years

Model Name	Part Number	RJ45 Ports	SFP slots	PoE	12~57V PoE booster
IJG7001	1P1IJG70010001G	2	0	1	Yes

Type	Model name	Part Number	Description
Wall Mount	Wall Mount set	70100000000052G	Aluminum wall mount kit
Power Supply	SDR-75-24	50500752240001G	DIN RAIL;AC 88~264V to 24VDC 3.2A;75W
Power Supply	SDR-240-48	50502401480001G	DIN RAIL;AC 88~264V to 48V~55VDC 5A; 240W
Power Supply	SDR-480-48	50504801480001G	DIN RAIL;AC 88~264V to 48V~55VDC 5A; 480W
