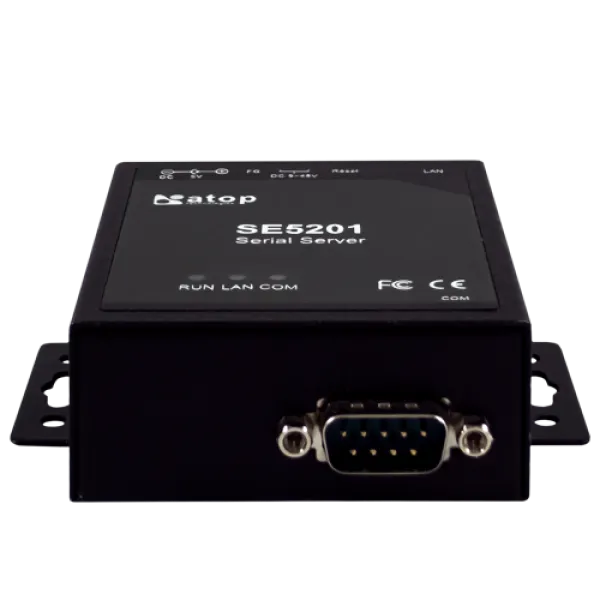

Despite Ethernet having become the new backbone standard of Industrial Automation, Serial devices still remain highly relevant today, with numerous devices installed on sites worldwide. So with ATOP’s SE5201 Series, you can transform any serial device into an Ethernet-capable one, allowing you to control and monitor your legacy serial devices via your LAN or WAN – or even over the internet.

With such connectivity, the amount of time required to configure or troubleshoot a serial device located on a factory floor or in a remote location is eliminated. And with such Ethernet-based connectivity, serial devices can be integrated into modern practices such as Industry 4.0 and IIoT, allowing you to extend their lifetime and avoid wholesale device upgrades in the near future.

Featuring 1 x software-selectable Serial Port and 1 x RJ45 Port, the SE5201 Series is a simple-to-install device, with easy configurations options such as Telnet, Web browser, or other Windows utilities. And using the VirtualCOM software, Windows-based applications can access serial devices by mapping the virtual com ports to the SE5201 serial server series.

Encased in a rugged metal housing offering high EMC protection, the SE5201 Series is ideal for industrial and manufacturing automation applications, such as PLCs, HMIs, Barcode Scanners, Data Terminals, Electronic Kanbans, Shop Floor Control Systems, and Pick-to-Light Systems.

Network Interface
Speed	IEEE 802.3 10BaseT IEEE 802.3u 100BaseT(X)
Auto-negotiation	Present
Auto MDI/MDI-X	Present
Connector ports	RJ45 x 1

Serial Interface
Connector	9-Pin D-Sub9 connector(Male, -DB version) or 5-Pin Terminal block (-TB version)
Mode	RS-232/RS-485(2 and 4 wire)/RS-422, software selectable
Ports	1
Baud Rate	1200~230,400 bps
Parity	None, Odd, Even, Space, Mark
Data Bits	7, 8
Stop Bits	1, 2
Flow Control	None, Xon/Xoff, RTS/CTS (RS-232 only)

Software
Protocols	TCP, IPv4, UDP, DHCP Client, HTTP, HTTPS, Telnet, ARP, SNMPv1,v2c,v3
Configuration	Atop Management Utility, Web UI, Telnet, CLI
VirtualCOM	Windows/Linux redirection software
Link Modes - TCP Client	Single destination or VirtualCOM
Link Modes - TCP Server	4 Connections; VirtualCOM or reverse Telnet
Link Modes - UDP	Up to 4 Ranges IP

Power	Value
Connector	3-Pin 5.08mm Lockable Terminal Block and DC Jack for redundancy
Input Voltage	3-Pin 5.08mm Lockable Terminal Block: 9-30VDC; DC Jack 5VDC
Power Consumption	<1.5W @9VDC
Power Redundancy	Yes
Reverse Polarity Protection	Yes

Physical Characteristics	Value
Dimension (W x H x D)	65mm x 78mm x 28mm (without wall-mount part) SE5201-TB: 88.5 x 78.3 x 27.8mm (with wall-mount part) SE5201-DB: 88.5 x 84 x 27.8mm (with wall-mount part and DB9 connector)
Weight	185g
Installation	Wall mount, DIN-Rail (optional)
Reset Button	Yes

Environmental Limits
Operating Temperature	-40°C ~ 70°C (-40°F ~ 158°F)
Storage Temperature	-40°C~85°C (-40°F~185°F)
Ambient Relative Humidity	5%~95%, (Non-condensing)

Certification	Standard
Safety	EN 60950-1 / EN62368-1
EMC	FCC Part 15, Subpart B, Class A, EN 55032, EN61000-6-4, EN 61000-3-2, EN 61000-3-3, EN 55024, EN61000-6-2
RoHS 2	Yes
REACH	Yes

Standard	Item	Test point	Value	Level
IEC 61000-4-2	Electrostatic Discharge	Contact Discharge	±4kV	2
IEC 61000-4-2	Electrostatic Discharge	Air Discharge	±8kV	3
IEC 61000-4-3	Radiated Susceptibility	80-1000MHz	10(V/m)	3
IEC 61000-4-4	EFT	AC Power Port	±2.0kV	3
IEC 61000-4-4	EFT	DC Power Port	±1.0kV	3
IEC 61000-4-4	EFT	Signal Port	±1.0kV	3
IEC 61000-4-5	Surge	AC Power Port	Line-to Line±1.0kV	3
IEC 61000-4-5	Surge	AC Power Port	Line-to Earth±2.0kV	3
IEC 61000-4-5	Surge	DC Power Port	Line-to Line±0.5KV	2
IEC 61000-4-5	Surge	DC Power Port	Line-to Earth±1KV	2
IEC 61000-4-5	Surge	Signal Port	Line-to Earth±1.0KV	2
IEC 61000-4-6	Conducted Susceptibility	0.15-80MHz	10 Vrms	3
IEC 61000-4-8	PFMF	Enclosure	30A/m	4
IEC 61000-4-11	DIP	AC Power Port	1. >95%,Reduction,0.5period 2. 30%, Reduction,25 period 3. >95%,Reduction,250 period	-

Certification	Standard
Shock	MIL-STD-810F Method 516.5
Drop	MIL-STD-810F Method 516.5
Vibration	MIL-STD-810F Method 514.5 C-1 & C-2
Warranty	5 Years
MTBF	25.29 years according to MIL-HDBK-217F, 25 degrees C
Protection	IEC/EN60529 - IP30

MODEL NAME	PART NUMBER	DESCRIPTION
SE5201-DB	1P1SE520100001G	Industrial Serial Device Server, 10/100BASE-T(X), RS232/422/485 DB9
SE5201-TB	1P1SE520100002G	Industrial Serial Device Server, 10/100BASE-T(X), RS232/422/485 TB5

MODEL NAME	PART NUMBER	DESCRIPTION
UN315-1212 (US-Y)	50500151120003G	Y-Type power adapter, 100~240VAC input, 1.25A @ 12VDC output, US plug, LV6
UNE315-1212 (EU-Y)	50500151120013G	Y-Type power adapter, 100~240VAC input, 1.25A @ 12VDC output, EU plug, LV6
UV305-0510(US-DC)	50500051500003G	DC jack (3.5/1.35/7.5 mm) power adapter, 100~240VAC input, 1.0A @ 5 VDC output, US plug, LV6
UVE305-0510 (EU-DC)	50500051500013G	DC jack (3.5/1.35/7.5 mm) power adapter, 100~240VAC input, 1.0A @ 5 VDC output, EU plug, LV6
UVE305-0510(UK-DC)	50500051500023G	DC jack (3.5/1.35/7.5 mm) power adapter, 100~240VAC input, 1.0A @ 5 VDC output, UK plug, LV6
ADP-DB9(F)-TB5	59906231G	Female DB9 to Female 3.81mm TB5 Converter
ADP-DB9(M)-DB9(F)	59901411G	SE_MB52XX DB9 Pin assignment to SE_MB50XX DB9 Pin assignment
DK-25	30200000000022G	Plastic DIN Rail Kit
