The NSG3309 Series are compact 9-port NAT switches, equipped with 6 or 8 GbE RJ-45 ports and up to 2 Gbps SFP Fiber links. With configurable WAN/LAN ports and NAT features, accessibility for internal resources is fully controlled and protected. And combined with RSTP support, rings can be set up on both WAN and LAN side for full network redundancy.

Furthermore, this switch series’ IP30 metal enclosure, slim and flat shape and DIN rail mountable housing allows easy deployment in harsh environments. And being compliant with IEC62443-4-2 and IEC62443-4-1, they achieve both product security features and requirements for secure development life-cycle.

With these industrial-grade features, NSG3309 switches are ideal to be positioned as a proxy at the edge of networks.

KEY FEATURES

• Virtual LAN: Divide local networks with 802.1q tagging to enhance data security and network efficiency.
• Embedded SD Card Slot: Automatically backup configurations periodically for use as the start-up configuration in the next booting. Recorded syslog can be saved in the SD card as well.
• Access Control: MAC/IPv4-based ACL is supported for LAN control.
• Integrated NAT: Network deployment made simple with full NAT modes including 1:1 NAT, Virtual NAT, IP Masquerade, and DMZ.
• IEC62443: Development based on IEC 62443-4-1 and compliant with IEC 62443-4-2 to meet industrial network security standards.
• Multi-Admin: Multiple Admin accounts with read-&-write or read-only access.

APPLICATION CASE
Flexibility with Configurable WAN/LAN NSG3308 series’ RJ-45 GbE ports can be configured as LAN or WAN ports. With built-in NAT functions, an extra router is not required for access between interior and exterior networks.

1:1 NAT Establish WAN to LAN communication initiating from either side. Each LAN device is allocated a dedicated IP address from the external network, without the need of extra configuration on a router/gateway, and regardless of protocols.

Virtual NAT Virtual NAT combines 1:1 NAT and virtual routing mechanisms. With 1:1 NAT, each external IP will be mapped to a virtual IP, and with this virtual IP, a virtual route will be created for accessibility to the LAN servers.

IP Masquerade NSG3308 Series can act as a network proxy, allowing access of different LAN servers via a single external IP address with different TCP/UDP ports.

DMZ Isolate specific LAN servers in the DMZ network to allow access from the external network while keeping the internal network secured.

WAN & LAN Backup The NSG3308 series are equipped with configurable WAN/LAN ports. For WAN backup, integrate switch into an RSTP ring with 2 WAN ports connecting to 2 different uplinks. As a result, the redundant uplink will take over when the main uplink router fails. Simultaneously, RSTP allows for redundant topology on the LAN side to ensure network continuity.

INTERFACE
RJ45 Ports	7 x 10/100/1000BASE-T(X) for NSG3309-2SFP 9 x 10/100/1000BASE-T(X) for NSG3309
Fiber Optics Ports	2 x Gb FX SFP slots for SFP models
LED Indicators	1 x P1 & P2, 1 x Alarm, 1 x SFP1 & SFP2, 1 x LAN Ports
Relay Output	1 x Relay Output (24V/1A) with current carrying capacity of 1A @ 24 VDC
SD-Card Slot	1 x on Din-Rail side
Button	1 x Factory Reset

CAPACITY
NAT Throughput	100 Mbps
Switching Capacity	18 Gbps for NSG3309 Series
Switching Fabric	13.39 Mpps for NSG3309 Series
Packet Buffer Size	2 Mb
MAC Table Size	16K
Jumbo Frame	10 KB

NETWORKING	STANDARD-
IP Version	IPv4
Ethernet Standards	IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-T(X) IEEE 802.3ab for 1000BaseT IEEE 802.3z for 1000BaseX IEEE 802.3x for Flow Control, back pressure flow control IEEE 802.1d-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid STP IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1q for VLAN Tagging IEEE 802.1p for Class of Service IEEE 802.3az for Energy Efficient Ethernet IEEE 802.1AB for LLDP Auto MDI/MDI-X
Redundancy	RSTP

NAT
1:1 NAT	Y
Virtual NAT	Y
IP Masquerading	Y
Port Forwarding	Y
DMZ	Y

VLAN
Max. Number of VLAN	4KB
VLAN ID	2 (Optional)
VLAN Type	Management VLAN Port-Based VLAN 802.1q Tag-Based VLAN

Security
Access Control List	MAC, IPv4

Time Synchronization
Network Time Sync.	NTP Server/Client, SNTP

Management
Web Interface	HTTP, HTTPS
SNMP	SNMPv1/v2c/v3, SNMP Trap/Inform
SNMP MIB	RFC1213, Ethernet-like MIB, IF MIB, LLDP MIB
LLDP	Y
Syslog	Y
DHCP Support	DHCP Server (port-based), DHCP Client
Backup/Restore	Configuration backup periodically to SD card
Diagnostics Utilities	RMON History, Port Mirror

Physical
Housing	IP30 SPCC, Black

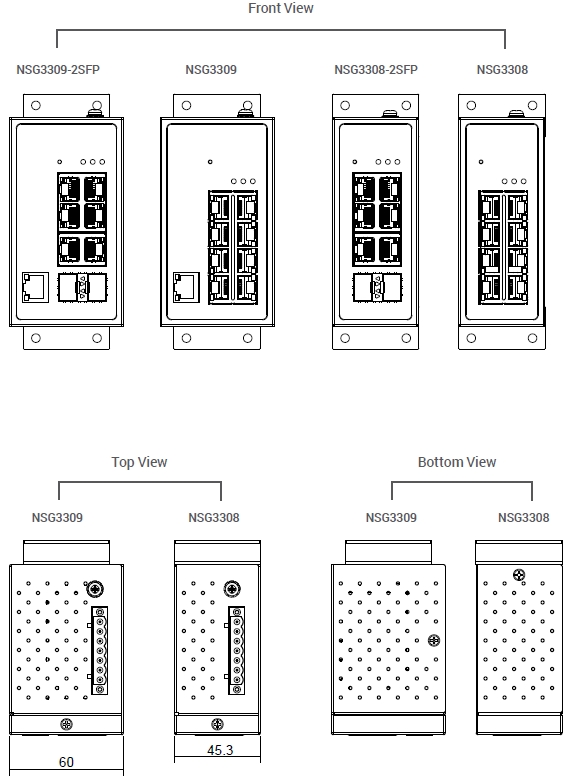

Dimension (W x H x D)	60 x 110 x 89.6 mm
Weight	400g (0.88lb)
Installation	DIN-Rail mount / Wall mount (optional kit)
Operating Temperature	-40°C to +70°C (-40°F to +158°F)
Storage Temperature	-40°C to +85°C (-40°F to +185°F)
Ambient Relative Humidity	5% to 95% (Non-condensing test @ 55°C)
Input Voltage	12 - 48VDC-Dual input
Input Current	Max. 1.0 A
Connector	1 x 7-Pin 5.08mm Lockable Terminal Blocks for Power Input
Reverse Polarity Protection	Y

Regulatory Approvals
Safety	UL 61010-1/-2-201 IEC 61010-1, EN 61010-1 IEC 61010-2-201, EN IEC 61010-2-201
EMI	FCC: Part 15, Subpart B, Class A
EMI	CE: EN 55032, EN 61000-6-4, EN 61000-3-2 / EN 61000-3-3
EMS	CE: EN 55035, EN 61000-6-2
RoHS	Yes

Test	ITEM		VALUE	LEVEL	CRITERION
IEC 61000-4-2	ESD	Contact Discharge Air Discharge	±6KV ±8KV	3 3	B B
IEC 61000-4-3	RS	80-1000MHz 1.4-6.0GHz 3(V/m)	10(V/m) 3(V/m)	3 2	A A
IEC 61000-4-4	EFT	DC Power Port Signal Port ±1.0KV	±2.0KV ±1.0KV	3 3	B B
IEC 61000-4-5	Surge	DC Power Port DC Power Port Signal Port	Line-to-Line ±1.0KV Line-to-Earth ±2.0KV Line-to-Earth ±2.0KV	3 3 3	B B B
IEC 61000-4-6	CS	0.15-80MHz	10V rms	3	A
IEC 61000-4-8	PFMF	Enclosure	30A/m	4	A

Model Name	Part Number	RJ-45 (10/100/ 1000 BASE-T)	SFP (1000FX)	NAT Throughput	Input Power
NSG3309	1P1NSG33090001G	9	-	100 Mbps	12-48VDC Dual input
NSG3309-2SFP	1P1NSG33090002G	7	2	100 Mbps	12-48VDC Dual input

Optional Accessories

Model Name	Part Number	Description
SDR-75-24	50500752240001G	75W/3.2A DIN-Rail 24VDC power supply 88 to 264VAC/124 to 370VDC input
AXGD-5854-0513	522AXGD5854001G	SFP Transceiver, 1250Mbps, 850nm, Multi-mode, 550m, 3.3V, -40 to +85°C, DDMI
AXGD-1354-0523	522AXGD1354001G	SFP Transceiver, 1250Mbps, 1310nm, Multi-mode, 2km, 3.3V, -40 to +85°C, DDMI
AXGD-1354-0533	522AXGD1354011G	SFP Transceiver, 1250Mbps, 1310nm, Single-mode, 10km, 3.3V, -40 to +85°C, DDMI
AXGD-3354-0593 I	522AXGD3354001G	SFP Transceiver, 1250Mbps, 1310nm, Single-mode, 40km, 3.3V, -40 to +85°C, DDMI
