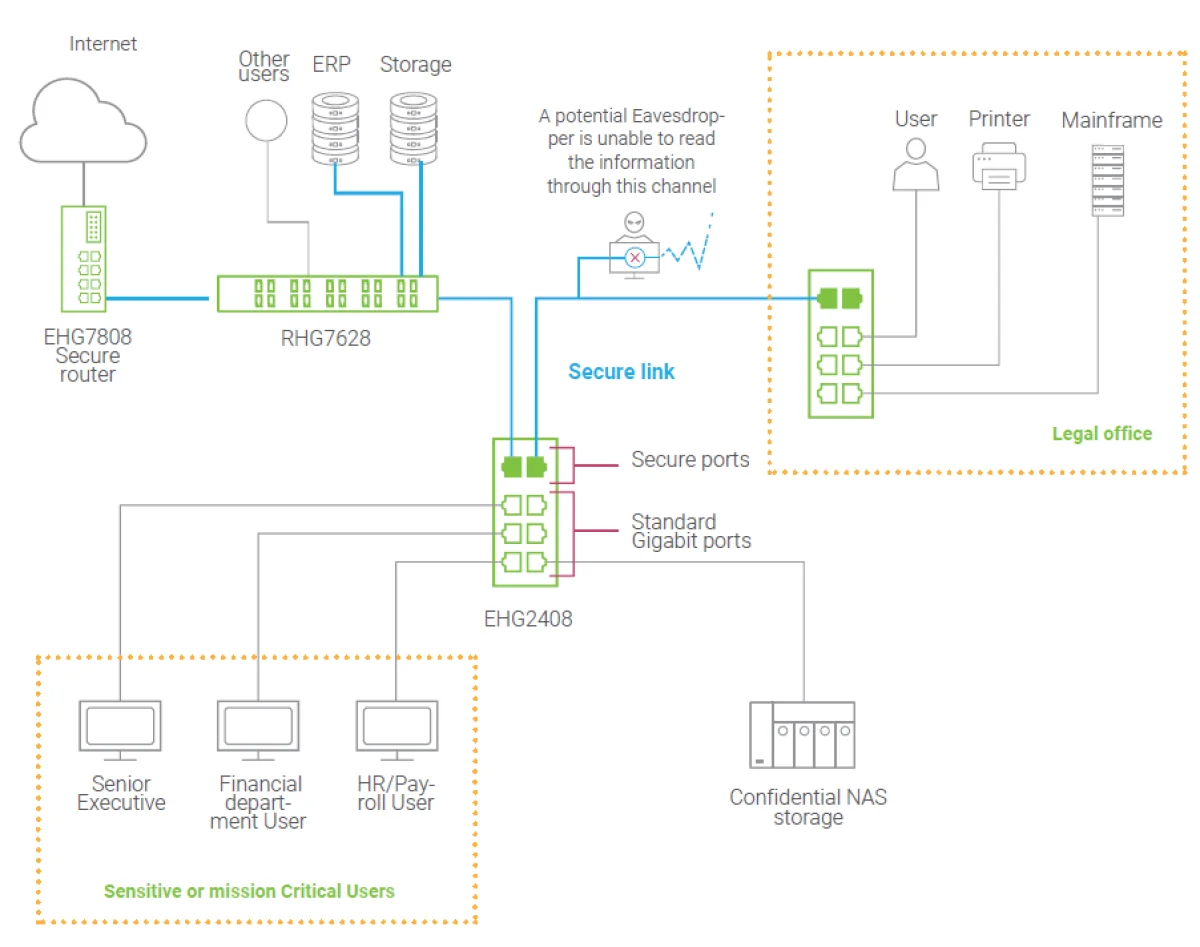

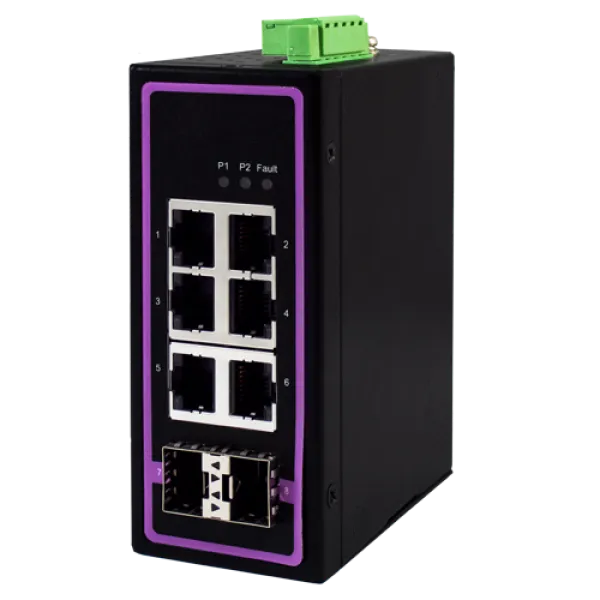

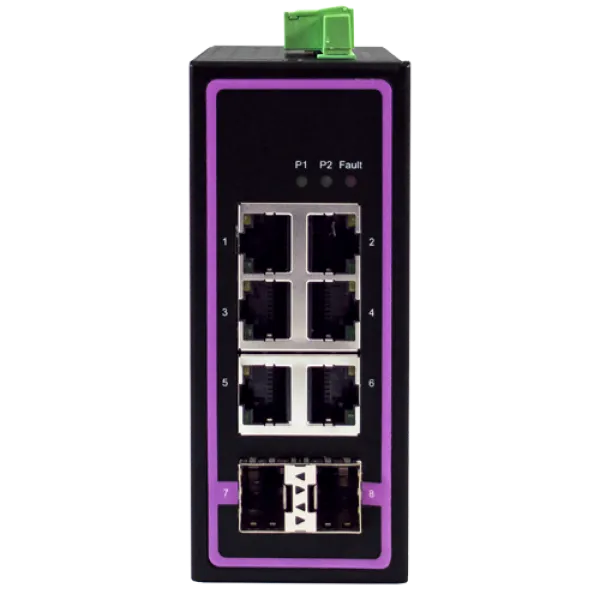

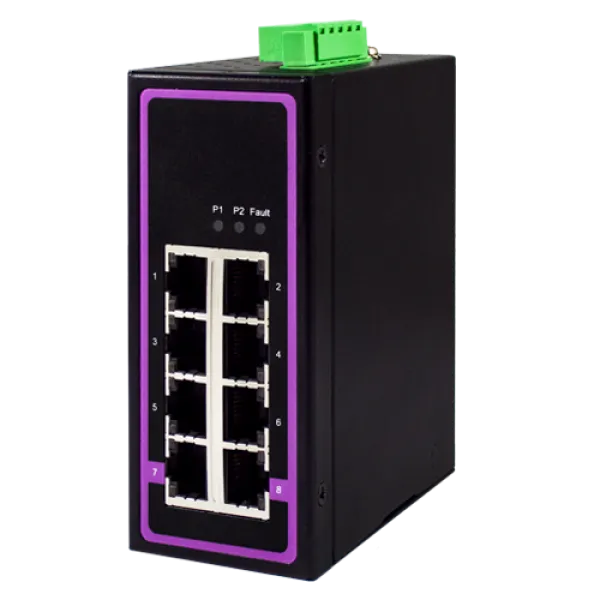

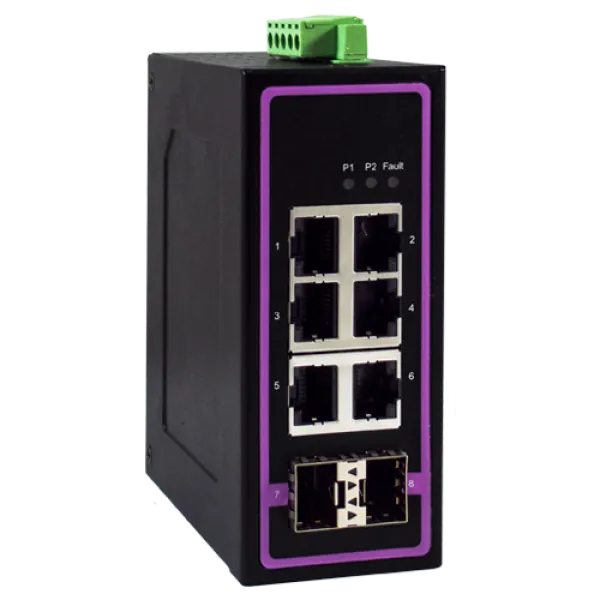

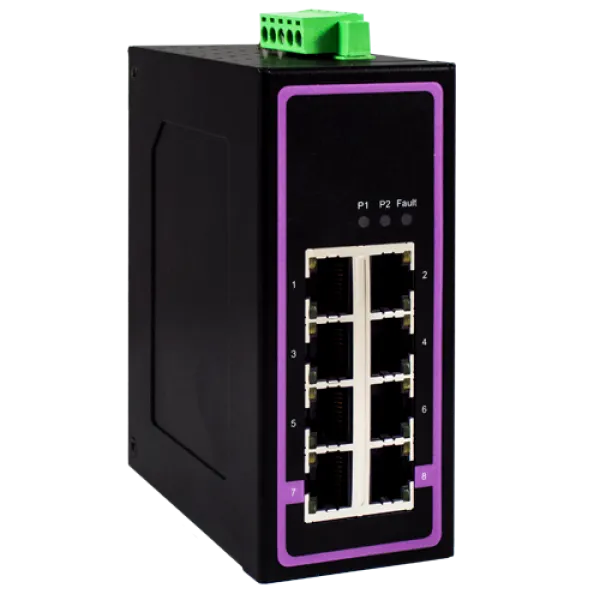

As more and more devices come online and networks open to the internet to make operational and communication gains with IIoT based services, security has become paramount for ensuring that your network’s traffic stays between your devices, with network vulnerabilities including unauthorized data access and unauthorized network commands, risking loss of data and operational downtimes. Featuring 6 x Gigabit RJ45 ports and the choice between 2 x Secure Gigabit RJ45 ports or 2 x Secure Gigabit SFP uplink slots, ATOP’s EHG2408 switch series provides a plug-and-play solution for fast, reliable network switching that offers increased network security through MACsec encryption. Providing point-to-point security on Ethernet links between nodes, MACsec uses GCM-AES to ensure the integrity of all network traffic. This means it can secure a network from a whole host of security threats, including intrusion, man-in-the-middle, masquerading, passive wiretapping, and playback attacks. And because MACsec encryption is hardware-based, there is no added latency. With its modern, slim, and  flat design to minimize surface area usage, the EHG2408 series is ideal for demanding industrial applications that require compact solutions while delivering high network performance. Supporting a wide operating temperature range of -20°C to 70°C and being compliant with essential sections of EN 60950, UL/IEC 60950, EN/IEC(CB)/UL62368-1, and MIL-STD-810G, the EHG2408 switch series is a powerful compact device that can perform under a variety of environmental conditions, such as power input voltage, shock, drop and vibration.

Switch Properties
Processing Scheme	Store and Forward
MAC Address Table	16k
Packet Buffer Size	2Mbit
Jumbo Frame	10kByte

Ethernet	Standard
Standards	IEEE 802.3 for 10 BaseT IEEE 802.3u for 100 Base T(X) IEEE 802.3ab for 1000 Base T IEEE 802.3z for 1000 Base-X IEEE 802.3x for Flow Control, back pressure flow control IEEE 802.3az for Energy Efficient Ethernet IEEE 802.1q for VLAN tagging (Prioritization of Profinet Packets) IEEE 802.1p for CoS (Prioritization of Profinet Packets) IEEE 802.1ae for MACsec
Flow control	Back pressure and pause frame-based flow control schemes
Transmission Rate	RJ45: 10/100/1000 Mbps SFP: 100/1000 Mbps
Protocols	IPv4, ICMP, Port Mirror, Modbus, SNMP v1/v2/v3, RSTP, Port Isolation, Portbased VLAN, Port Security, 802.1x Authentication, Syslog, Telnet, CLI, NTP, QoS, LLDP
Auto MDI/MDI-X	Yes

Interfaces
RJ45 Ports	6 or 8 10/100/1000BASE-T(X) auto negotiation speed
Fiber Optics Ports	2 100BASE-F(X)/1000BASE-X SFP slot (SFP version)
LED Indicators	P1, P2, Fault
Console	No
Button	Reset Button

Power
Input Voltage	9~48 VDC, dual power input
Input Current (System)	0.64 A Max
Power Consumption (System)	5.8 W Max
Connector	5-Pin 5.08mm Lockable Terminal Block
Reverse Polarity Protection	Yes

Physical Characteristics	Value
Housing	IP30 aluminum housing

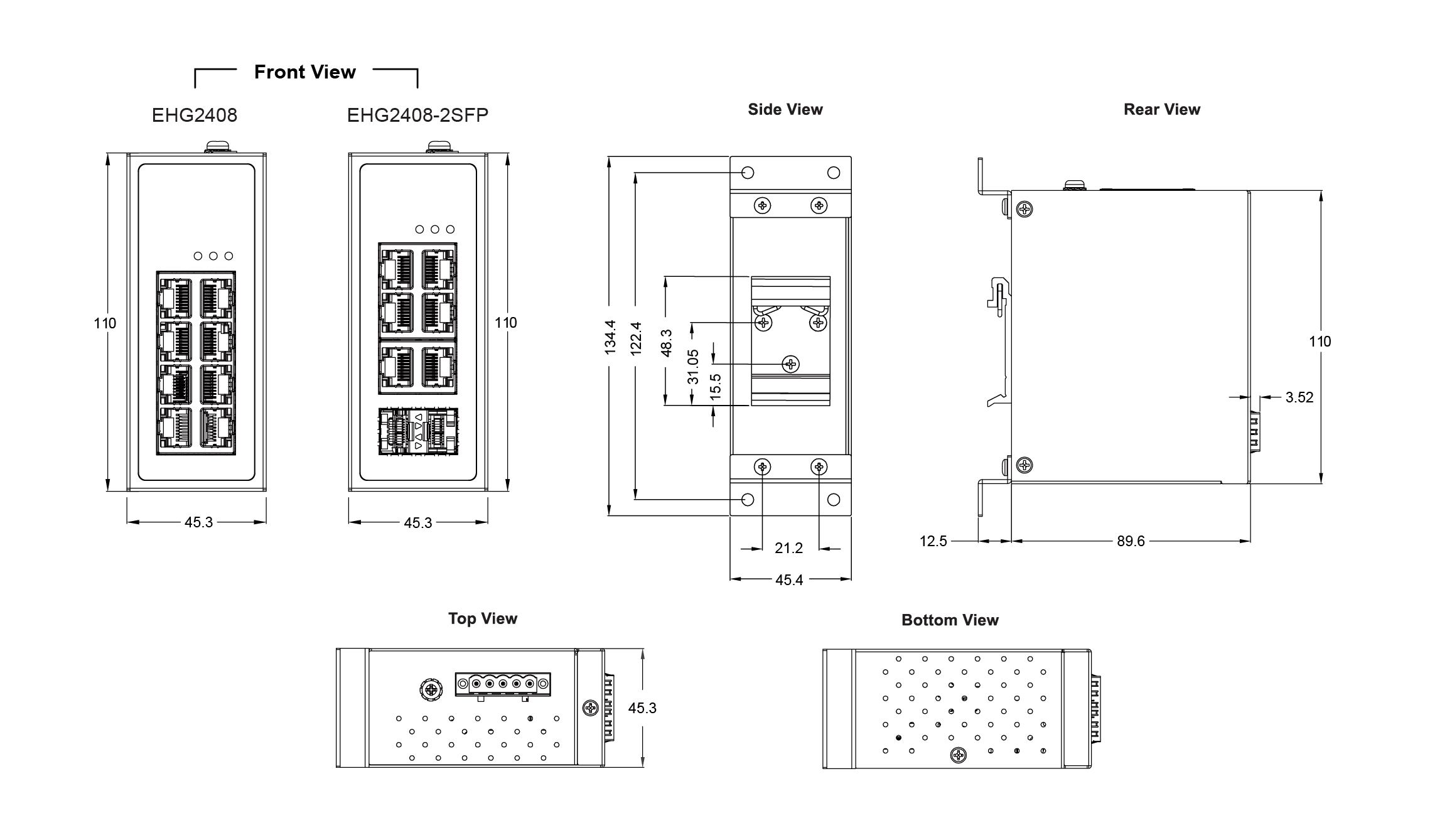

Dimension (W x H x D)	45.3 mm x 89.6 mm x 110 mm
Weight	400g
Installation	DIN-Rail , Wall mount (optional kit)

Environmental Limits	Value
Operating Temperature	-20°C to +70°C (-4°F to +158°F)
Storage Temperature	-40°C to +85°C (-40°F to +185°F)
Ambient Relative Humidity	5%~95%, 55°C (Non-condensing)

Certification	Standard
Safety	EN60950-1, UL/IEC(CB) 60950-1, UL 62368-1 / IEC 62368-1 / EN62368-1
EMC	FCC Part 15, Subpart B, Class A, Class B EN 55032:2015 + AC:2016 ( Class B, EN55024), EN 61000-6-2, EN 61000-6-4,



Standard	Item	Test	Value	Level
IEC 61000-4-2	ESD	Contact Discharge Air Discharge	±8kV ±15kV	4 4
IEC 61000-4-3	RS	80-1000MHz 1.4-2.0GHz 2.0-2.7GHz	10 V/m 3 V/m 1 V/m	3 3 3
IEC 61000-4-4	EFT	DC Power Port Signal Port	±2.0KV ±1.0KV	3 3
IEC 61000-4-5	Surge	DC Power Port DC Power Port Signal Port Signal Port	±1.0KV ±2.0KV ±1.0KV ±2.0KV	3 3 3 3
IEC 61000-4-6	CS	0.15-80MHz	10 V rms	3
IEC 61000-4-8	PFMF	Enclosure	30 A/m	3
IEC 61000-4-11	DIP	AC Power Port	-	A



Certification	Standard
Shock Drop Vibration	MIL-STD-810G Method 514.7(2014), IEC 60068-2-27 MIL-STD-810G Method 516.7(2014), IEC 60068-2-32 MIL-STD-810G Method 514.7(2014), IEC 60068-2-6
RoHS II	Yes
REACH	Yes
MTBF	25.83 years (according to MIL-HDBK217F)
Warranty	5 Years

MODEL NAME	PART NUMBER	Description
EHG2408	1P1EHG24080001G	8*10/100/1000M RJ45,2*MACSec
EHG2408-2SFP	1P1EHG24080002G	6*10/100/1G RJ45,2*1G SFP/MACSec

Optional Accessories

MODEL NAME	PART NUMBER	DESCRIPTION
Wall Mount set	70100000000056G	45.4 x22.8 x1.5 Aluminum wall mount with screw
AXFD-1314-0523	522AXFD1314001G	SFP Transceiver;155Mbps, Multi-mode;1310nm;2km;-40~85, DDMI
AXFD-1314-0553	522AXFD1314011G	SFP Transceiver;155Mbps, Single-mode;1310nm;30km;-40~85, DDMI
AXGD-5854-0513	522AXGD5854001G	SFP Transceiver, 1250Mbps, 850nm, Multi-mode, 550m, 3.3V, -40~85°C, DDMI
AXGD-1354-0523	522AXGD1354001G	SFP Transceiver, 1250Mbps, 1310nm, Multi-mode, 2km, 3.3V, -40~85°C, DDMI
AXGD-1354-0533	522AXGD1354011G	SFP Transceiver, 1250Mbps, 1310nm, Single-mode, 10km, 3.3V, -40~85°C, DDMI
AXGD-3354-0593	522AXGD3354001G	SFP Transceiver, 1250Mbps, 1310nm, Single-mode, 40km, 3.3V, -40~85°C,DDMI
SDR-75-24	50500752240001G	AC 88~264V to 24V DC 3.2A; 75W
