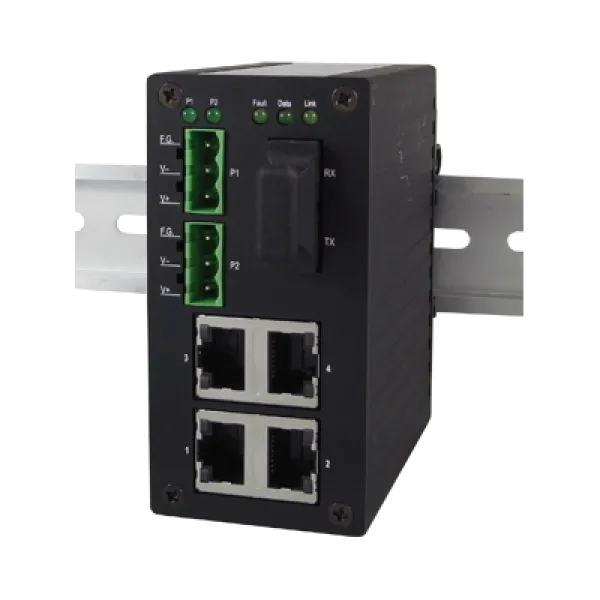

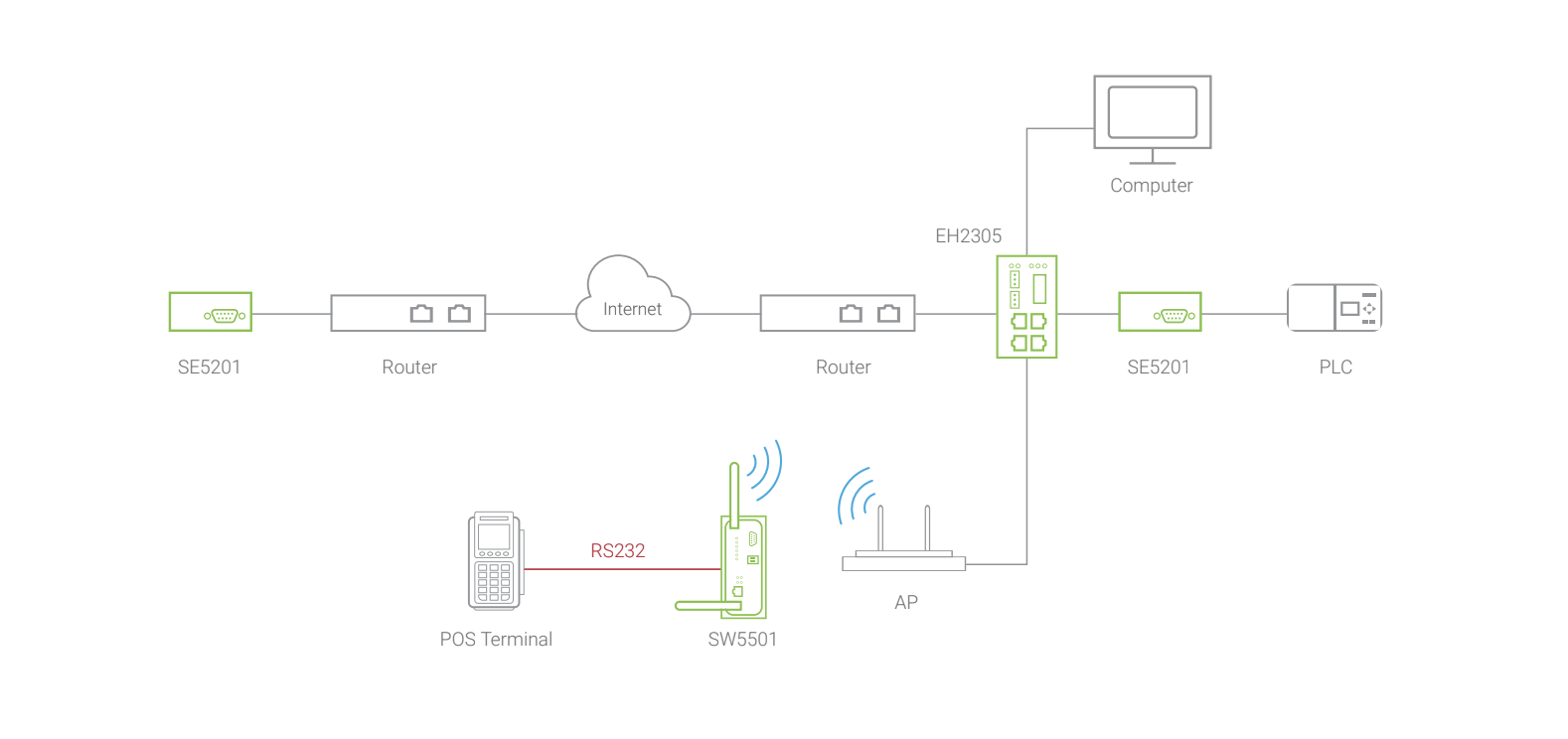

The EH2305-1Fm/1Fs has a metal housing with 4 RJ-45 ports and one optical ST/SC port, it’s designed to work in the industrial environment, such as in hazardous locations, where it complies with CE, FCC, UL and RoHS standards.

The EH2305 series protects itself from receiving too many broadcast packets. During normal use, broadcast packets will be forwarded to all ports except the source port. However, it will discard broadcast or multicast packets if the number of those packets exceeds a threshold in a preset period of time. When the preset period expires (about 800ms), it will then resume receiving broadcast or multicast packets until the threshold is reached again.

The EH2305 series provides two redundant power inputs that can be connected simultaneously to wide-range DC power sources. If one of the power inputs failure, the other live source acts as a backup to provide EH2305 series the power it needs automatically.

Ethernet
Transmission Rate	10/100Mbps
Ports	5
10/100Mbps	5
Connector	RJ-45 x 4 + Fs/Fm x 1
Auto MDI/MDI-X	Yes

Power
Input	DC 9 ~ 30V
Connector	Dual 3-pin 5.08mm pitch Terminal block
Consumption	5.4Watts Max

Environment
Operating	-10°C ~ 70°C ( 14oF ~ 158oF )
Storage	-40oC ~ 85oC ( -40oF ~ 185oF ), 5%~95% RH
Notes: For UL policy the maximum operating temperature is 50oC, and the human body can tolerate maximum temperature is 70oC.

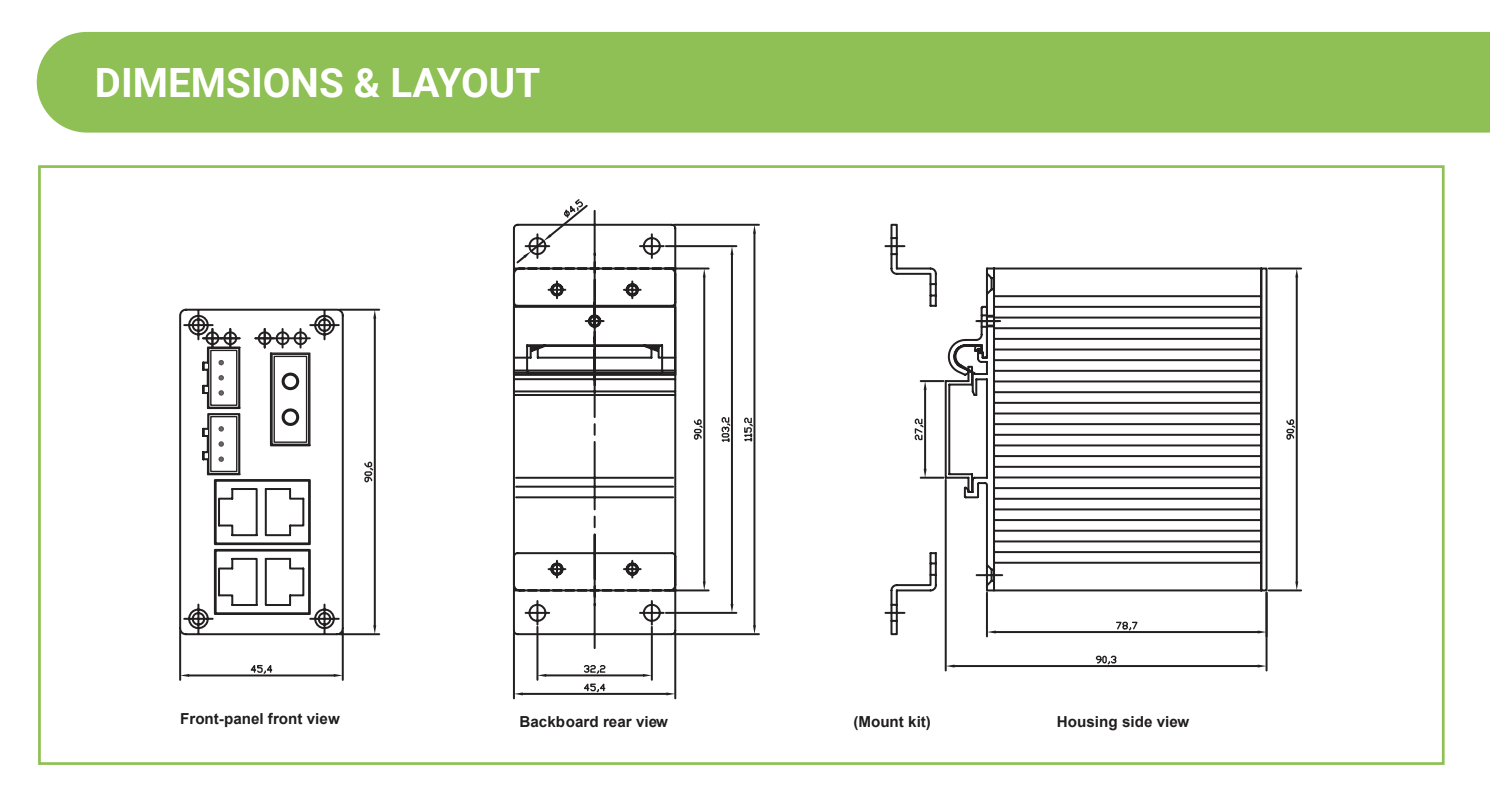

Dimension
W x H x D	45.2mm x 90mm x 78mm

Certification	Standard
Safety	UL 60950-1 /CSA C22.2 No.60950-1-03 / LVD EN62368-1
EMC	FCC Part 15, Subpart B, Class A EN 55032, EN 55024, EN 61000-3-2, EN 61000-3-3, EN61000-6-2 , EN61000-6-4

Standard	Item	Test	Value	Level
IEC 61000-4-2	ESD	Contact Discharge Air Discharge	±4KV ±8KV	2 3
IEC 61000-4-3	RS	80-1000MHz 1.4-2.0GHz 2.0-2.7GHz	10(V/m) 3(V/m) 1(V/m)	3 2 1
IEC 61000-4-4	EFT	Signal Port	±1.0kV	3
IEC 61000-4-5	Surge	DC Power Port Signal Port	Line-to Line±0.5kV Line-to Earth±1.0kV	2 2
IEC 61000-4-6	CS	0.15-80MHz	10 V rms	3
IEC 61000-4-8	PFMF	Enclosure	30 V/m	4
Shock Freefall Vibration	IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-64
RoHS II	Yes
MTBF	20 Years

MODEL NAME	PART NUMBER	RJ45	Fiber Optic ST	Fiber Optic SC	Description
EH2305-1Fm	1P1EH23051FM01G	4	1	-	Industrial 5-port Unmanaged Fast Ethernet Switch with 4x 10/100TX & 1x 10/100FX Multi-mode
EH2305-1Fs	1P1EH23051FS01G	4	0	1	Industrial 5-port Unmanaged Fast Ethernet Switch with 4x 10/100TX & 1x 10/100FX Single-mode

Optional Accessories	Description
Power Adapter	UN315-1212 (US-Y): Y-Type power adapter, 100~240VAC input, 1.25A @ 12VDC output, US plug, LV6
	UNE315-1212 (EU-Y): Y-Type power adapter, 100~240VAC input, 1.25A @ 12VDC output, EU plug, LV6

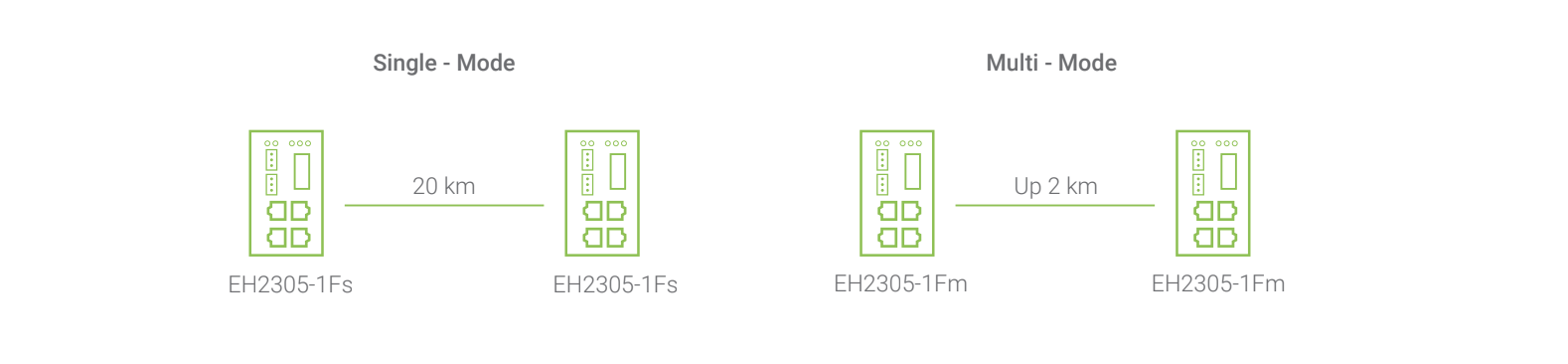

Optical Fiber Specifications
Speed	Fast Ethernet 100 Base FX
Mode	Multi-mode	Single-mode
Connectors	ST	SC
Typical Distance	2 Km (Max)	20 Km (Max)
Cable Size Core / Cladding	62.5/125 um	9/125 um
Wavelength	1270(Min)~1360(Max) nm	1263(Min)~1360(Max) nm
Max. TX Power	-14 dBm	-8 dBm
Min. TX Power	-19 dBm	-15 dBm
RX Sensitivity	-34 dBm(Typical) -32 dBm(Max)	-32 dBm(Max)
Link Budget	-	-
Saturation / Overload	-	-
Typical Budget	-	-
