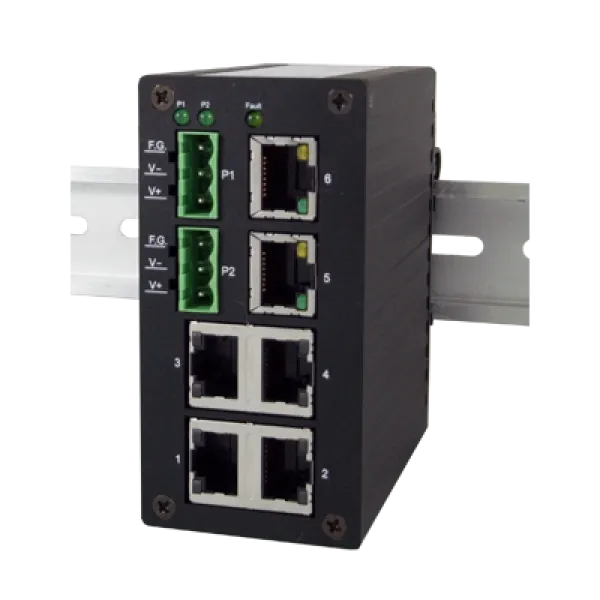

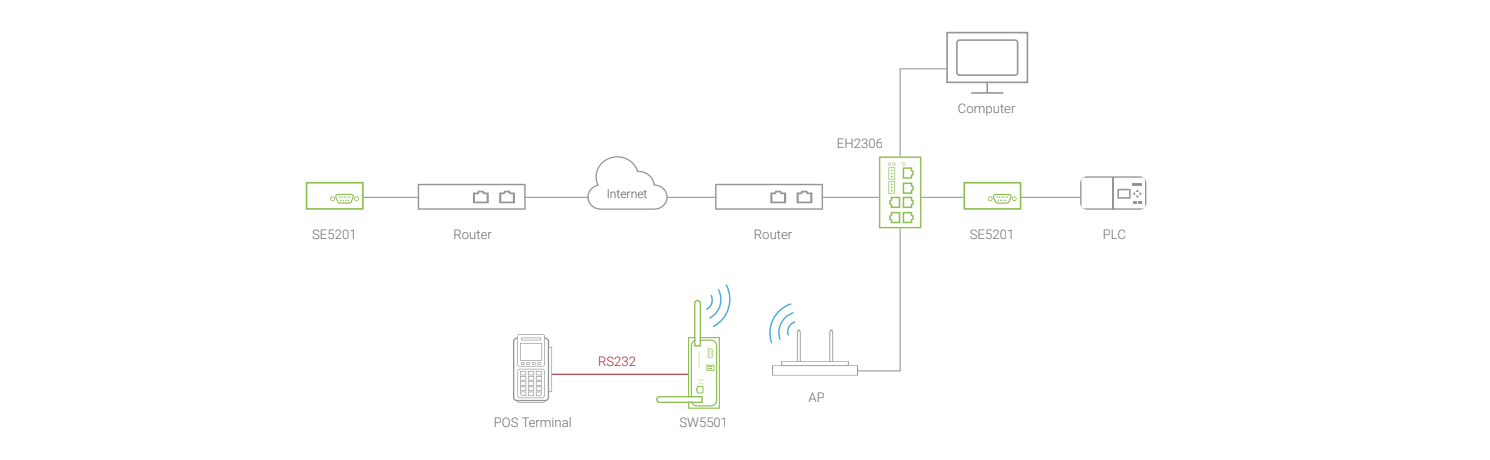

The EH2306 with 6 RJ-45 ports has a metal housing and is designed to work in the industrial environment, such as in hazardous locations, where it complies with CE, FCC, UL and RoHS standards.

The EH2306 protects itself from receiving too many broadcast packets. During normal use, broadcast packets will be forwarded to all ports except the source port. However, it will discard broadcast or multicast packets if the number of those packets exceeds a threshold in a preset period of time. When the preset period expires (about 800ms), it will then resume receiving broadcast or multicast packets until the threshold is reached again.

The EH2306 provides two redundant power inputs that can be connectedsimultaneously to wide-range DC power sources. If one of the power inputs failure, the other live source acts as a backup to provide the EH2306 the power it needs automatically.

Ethernet
Transmission Rate	10/100Mbps
Ports	6
10/100 Mbps	6
Connector	RJ-45 x 6
Auto MDI/MDI-X	Yes
Standards	IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/ 100BASE-FX

Power
Input Voltage	DC 9 ~ 30V
Connector	Dual 3-pin 5.08mm pitch Terminal block
Power Consumption	5.4 Watts Max
Input Current	0.60A
Reverse Polarity Protection	Yes
Redundancy	Yes

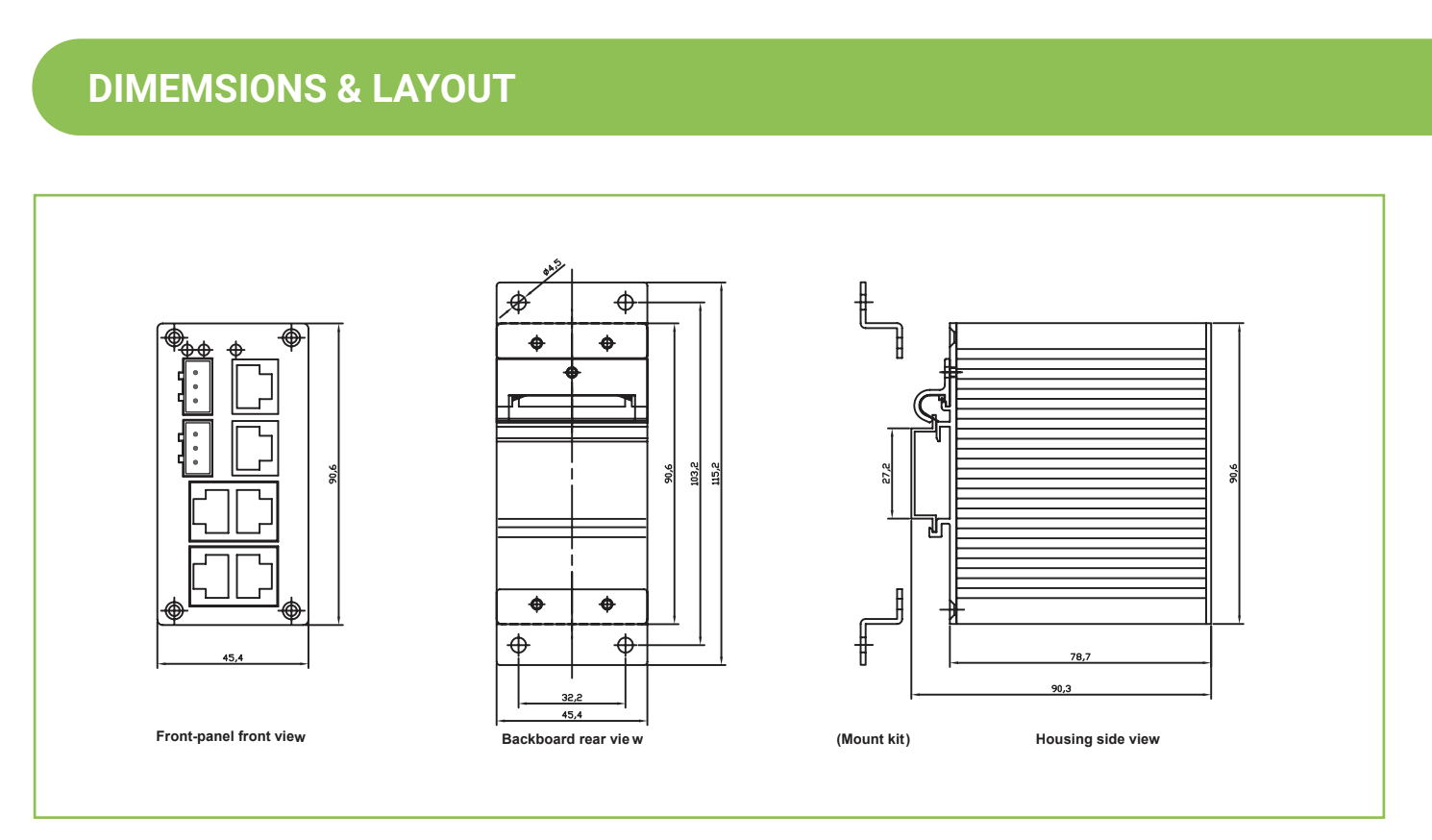

Physical Characteristics	Value
Housing	IP30 protection; aluminum housing
Dimension (W x H x D)	45.2 x 90 x 78 mm
Weight	255g
Installation	DIN-Rail , Wall mount (optional kit)
Reset Button	No
Warranty	5 years

Environmental Limits	Value
Operating	-10°C to +70°C ( +14oF to +158oF )
Storage	-40oC to +85oC ( -40oF to +185oF )
Ambient Relative Humidity	5%-95% non-condensing

Certification	Standard
Safety	UL 60950-1 /CSA C22.2 No.60950-1-03 / LVD EN62368-1
EMC	FCC Part 15, Subpart B, Class A EN 55032, EN 55024, EN 61000-3-2, EN 61000-3-3, EN61000-6-2 , EN61000-6-4

Standard	Item	Test	Value	Level
IEC 61000-4-2	ESD	Contact Discharge Air Discharge	±4KV ±8KV	2 3
IEC 61000-4-3	RS	80-1000MHz 1.4-2.0GHz 2.0-2.7GHz	10(V/m) 3(V/m) 1(V/m)	3 2 1
IEC 61000-4-4	EFT	Signal Port	±1.0kV	3
IEC 61000-4-5	Surge	DC Power Port Signal Port	Line-to Line±0.5kV Line-to Earth±1.0kV	2 2
IEC 61000-4-6	CS	0.15-80MHz	10 V rms	3
IEC 61000-4-8	PFMF	Enclosure	30 V/m	4
Shock Freefall Vibration	IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-64
RoHS II	Yes
MTBF	20 Years

MODEL NAME	PART NUMBER	DESCRIPTION	RJ45
EH2306	1P1EH230600001G	Industrial 6-port Unmanaged Fast Ethernet Switch with 6x 10/100TX	6

Optional Accessories	MODEL NAME	PART NUMBER	Description
Power Adapter	UN315-1212 (US-Y)	50500151120003G	Y-Type power adaptor, 100-240VAC input, 1.25A @ 12VDC output, US plug, LV6
	UNE315-1212 (EU-Y)	50500151120013G	Y-Type power adaptor, 100-240VAC input, 1.25A @ 12VDC output, EU plug, LV6
