CR5201B
Low Power Consumption Gateway LTE Cat-1
- Comprehensive Connectivity - LTE Cat 1 - 2x 100 Base TX RJ 45, 2x LAN - 1 DI & 1 DO I/O Interface
- Reliable & Trustworthy Platform - Multi WAN Failover - Secure VPN and Firewall Isolation - IEC62443-4-2 Cybersecurity Compliance*
- Quick Deployment & Management - ATOP NMS Management
- Compact and Robust Design - Efficient Power Consumption (<100 mW) - Dimensions: 136 x 95 x 30 mm - Industrial EMC Protection - -30°C to +75°C Operation
- Other Features - SD Slot for Configuration and Storage - Optional GPS Function - Schedulable Power Management
- High Quality Guaranteed - Made in Taiwan with 5 Years Warranty
ATOP CR5201B IoT gateway is a super-low power consumption LTE gateway. In addition to high EMC protection, widetemperature operation, and rugged metal housing, CR5201B series has a configurable power management mechanism to reduce device power consumption. It is suitable for various operations, especially in power-challenged environments.
Efficient Power Consumption CR5201B supports Cellular LTE Cat-1. With extended idle and sleep modes, these standards have lower power consumption than other LTE standards. CR5201B further enhances this efficiency by using less than 100 mW power in sleep mode, allowing easy deployment in power-challenged environments.
Expandable SD Storage CR5201B reserves the flexibility to extend its storage capacity through a built-in SD slot, so you can store more data on the IoT gateway for work efficiency as well.
Exceptional Security Integrating Firewall, Zone forwarding, and VPN functions, ATOP CR5201B allows you to connect your industrial network to the internet without fearing intrusions to your organization data.
Endurance of Harsh Environments ATOP CR5201B is proven to run at its maximum loading in the harshest EMC and climate environments. APPLICATION CASE
As a Low Power Consumption IoT Gateway CR5201B can act as a low power consumption gateway. Through its smart power management mechanism, the device switches to sleep mode or hibernation mode during non-service phases, and can be woken via scheduled management policies to serve functions when needed. It is especially suited where power supply is limiting, such as in systems powered by solar batteries.
As a Cyber Security Gateway CR5201B is also designed to act as a cyber security gateway. Un-secured network access will be denied by the firewall protection, while secured VPN tunnels enhance the security of your data transmission during the network communication. Security and encryption are indispensable to IoT, and therefore fundamental functions of CR5201B.
Efficient Power Consumption CR5201B supports Cellular LTE Cat-1. With extended idle and sleep modes, these standards have lower power consumption than other LTE standards. CR5201B further enhances this efficiency by using less than 100 mW power in sleep mode, allowing easy deployment in power-challenged environments. Expandable SD Storage CR5201B reserves the flexibility to extend its storage capacity through a built-in SD slot, so you can store more data on the IoT gateway for work efficiency as well. Exceptional Security Integrating Firewall, Zone forwarding, and VPN functions, ATOP CR5201B allows you to connect your industrial network to the internet without fearing intrusions to your organization data. Endurance of Harsh Environments ATOP CR5201B is proven to run at its maximum loading in the harshest EMC and climate environments. APPLICATION CASE As a Low Power Consumption IoT Gateway CR5201B can act as a low power consumption gateway. Through its smart power management mechanism, the device switches to sleep mode or hibernation mode during non-service phases, and can be woken via scheduled management policies to serve functions when needed. It is especially suited where power supply is limiting, such as in systems powered by solar batteries. As a Cyber Security Gateway CR5201B is also designed to act as a cyber security gateway. Un-secured network access will be denied by the firewall protection, while secured VPN tunnels enhance the security of your data transmission during the network communication. Security and encryption are indispensable to IoT, and therefore fundamental functions of CR5201B. | Hardware Specifications | |
|---|---|
| Model Name | CR5201B |
| Cellular Interfaces | |
|---|---|
| Standards | LTE Cat 1 |
| Ethernet Interfaces | |
|---|---|
| Standards | 802.3 for 10BaseT(X) 802.3u for 100BaseT(X) |
| Ports | 2 x RJ-45 10/100 BaseT(X), 1.5kV isolation |
| GNSS | |
|---|---|
| Standards | GPS/GLONASS/BeiDou/Galileo/QZSS |
| LED Indicators | |
|---|---|
| Power LED | 1x Green LED |
| Run LED | 1x Green LED |
| COM LED | 1x Tx Green LED; 1x Rx Green LED |
| DI/DO LED | 1x DI LED; 1x DO Green LED |
| LTE Signal | 4X Green LED |
| Antennas | |
|---|---|
| Cellular | 2 x SMA(M) Antenna for LTE Cat.1 |
| GNSS (Optional) | 1 x Wide-Band |
| Power Characteristics | |
|---|---|
| Connector Type | Terminal Block |
| Input Voltage | 9 to 48 VDC |
| Reverse Polarity Protection | Yes |
| Physical Characteristics | |
|---|---|
| Housing | Metal housing, IP30 Protection |
| Dimension (W x H x D) | 136 x 95 x 30 mm |
| Weight | TBD |
| Installation | DIN-Rail, Wall mount (Optional) |
| Reset Button | Yes |
| Environmental Limits | |
|---|---|
| Operating Temperature | -30 to +75 °C |
| Storage Temperature | -40 to + 85 °C |
| Ambient Relative Humidity | 5% to 95% (non-condensing) |
| Ingress Protection Rating | IP30 |
| Software Specifications | |
|---|---|
| Protocols | TCP/IP, UDP, ARP, DHCP, SMTP, SNMP, Https, SNMP v1/v2/v3 |
| Security | OpenVPN, IPSEC, L2TP |
| Virtual COM | Yes |
| Firewall | ACL, NAT, Port-forwarding |
| VPN | IPSEC, OpenVPN, L2TP |
| System Management | WEB, SSH, Telnet |
| Power Management | Scheduled power management - Sleep mode - Hibernation mode Multi waken-up mechanisms from sleep/hibernation modes - Timer |
| Regulatory Approvals | |
|---|---|
| NCC | CNS 15936/15598-1 |
| Test | Item | Value | Level | |
|---|---|---|---|---|
| IEC 61000-4-2 | ESD | Contact Discharge Air Discharge | ±4KV ±8KV | 2 3 |
| IEC 61000-4-3 | RS | Enclosure Port | 10 (V/m) , 80-1000MHz 3 (V/m), 1.4-6.0GHz | 3 3 |
| IEC 61000-4-4 | EFT | DC Power Port Signal Port | ±1.0KV@ 5.0kHz ±1.0KV @ 5.0kHz | 2 3 |
| IEC 61000-4-5 | Surge | DC Power Port Signal Port | Line-to-Line ±0.5KV Line-to-Earth ±1.0KV Line-to-Earth ±1.0KV | 2 2 2 |
| IEC 61000-4-6 | CS | DC Power Port Signal Port | 10V, 150KHz to 80MHz, 80%AM 10V, 150KHz to 80MHz, 80%AM | 3 3 |
| IEC 61000-4-8 | PFMF | Enclosure | 30A/m (r.m.s), 50Hz or 60Hz | 4 |
| Shock | IEC 60068-2-27 | |||
| Freefall | IEC 60068-2-32 | |||
| Vibration | IEC60068-2-64 | |||
| Others | - ROHS, including 2015 amendment - REACH - TSCA (US) - TPCH (US) - Conflict mineral free | |||
| MTBF | TBD | |||
| Warranty | 5 years | |||

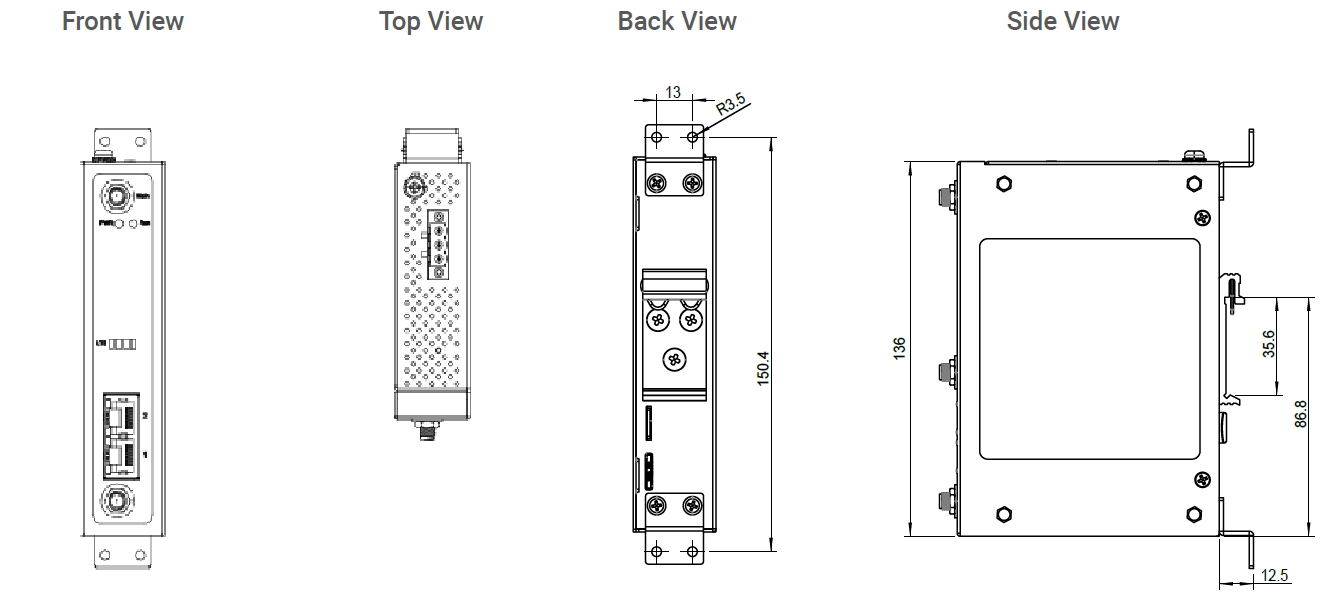

DIMENSIONS & LAYOUT
| Model | Part Number | Cellular | Band | RS232/485 Serial Port | SIM Slots | GPS |
|---|---|---|---|---|---|---|
| CR5201B-E-T-C1 | 1P1CR5201B0011G | LTE Cat.1 | B1/B3/B7/B8/B20/B28 | - | 1 | - |
