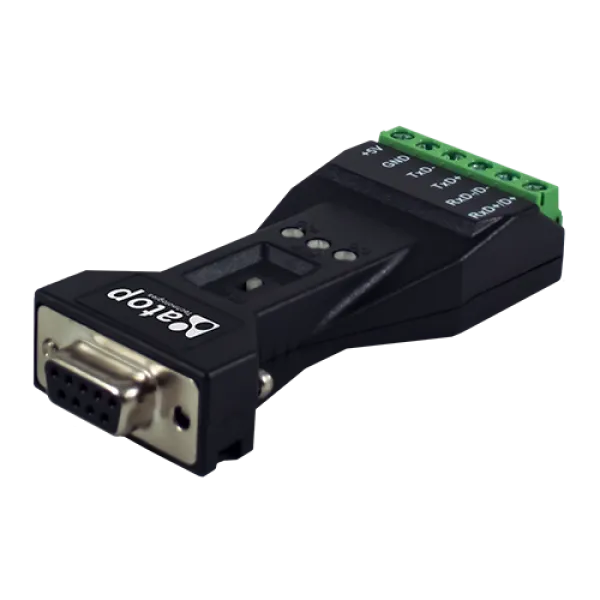

The SS100/SS100SiS media converters provide complete signal conversion between RS-232 and RS-422/485, without requiring an external power source. It is a fast and efficient solution to overcome distance limitations of RS232 or for connecting to industrial devices with an RS422/RS485 interface. The converters support both half-duplex 2-wire RS-485 and full-duplex 4-wire RS-422/485, and you could select mode via DIP switch without extra software required. Automatic data direction control is provided for RS-485. In this case, the RS-485 driver is enabled automatically when the circuitry senses the TxD output from the RS-232 signal. This means that no programming effort is required to control the transmission direction of the RS-485 signal.   Port Power over RS232 The RS-232 port of the SS100/SS100SiS is a DB9 female socket that can connect directly to the host PC, using the RTS/DTR lines to receive the power needed to run. Regardless of whether the signal is high, the can obtain enough power from the data line. SS100-SiS, the version with isolation, still requires an external power supply. When there are many devices connected to RS422 or RS485 signal lines, we recommend that external power supply is necessary.   LED Port Power Indicator It is easy to let the SS100 test the device for you. Simply connect the SS100 to the device’s RS-232 port and set the RS485 Echo mode. If the power port LED indicator of PWR/Tx/RX lights up, then SS100 is receiving enough power and data communication is working properly.

Serial interface
Mode	RS422 : Point to point Mode, Multi-Drop Mode RS485: Echo Mode, Non-Echo Mode
Speed	1200bps ~ 500Kbps
Maximum Distance	1.2Km. @115.2Kbps, 24AWG twisted pair cable
Connector	RS232: DB9 female RS422/485: Terminal block 6P (DC-Jack would be 4P)
Data bits	5, 6, 7, 8
Stop bits	1, 2
Parity	None, even, odd, space, mark
Data control	Auto toggling
Termination Resistor	120Ω, selectable via dip switch

Interface
LEDs	Power, Tx, Rx

Power Requirements
Power	Power supply via RS232 port (RTS, DTR), by TB or DC Jack
Power input	5 VDC
Power consumption	Non-ISO 115mW Max, ISO 220mW Max

Physical Characteristics
Housing	Plastic
Dimension	33.8 x 76.4 x 17.5 mm
Weight	21 g

Environmental Limits
Operating Temperature	-40°C ~ 85°C (-40°F ~ 185°F)
Storage Temperature	-40°C ~ 85°C (-40°F ~ 185°F)
Ambient Relative Humidity	5 to 95%, non-condensing

Certification
EMC	EN55032/24, EN61000-6-4, EN61000-6-2, EN61000-3-2, EN61000-3-3
EMI	FCC Part 15B Class A
RoHS	Yes

Standard	Item	Test	Value	Level	Criterion
IEC 61000-4-2	ESD	Contact Discharge Air Discharge	±6KV ±8KV	3 3	B B
IEC 61000-4-3	RS	80-1000MHz	10(V/m)	3	A
IEC 61000-4-4	EFT	AC Power Port	±2.0KV	3	B
IEC 61000-4-5	Surge	AC Power Port	Line-to-Line±1.0KV	3	B
IEC 61000-4-6	CS	0.15-80MHz	10 Vrms	3	A
IEC 61000-4-8	PFMF	Enclosure	30A/m (r.m.s)	3	A
IEC 61000-4-11	DIP	AC Power Port	1. >95% reduction, 1 period 2. 60% reduction, 10 period 3. 30% reduction, 25 periods 4. >95% reduction, 250 periods	-	A A A C

Standard	Item
MTBF	25.29 years
Warranty	5 years

MODEL NAME	PART NUMBER	RS232	RS422/485	Isolation Voltage	Power Connector
SS100	1P1SS100000001G	DB9	TB-6	N/A	TB-2
SS100-SiS-R	1P1SS100000002G	DB9	TB-6	3000 VDC at RS232	TB-2
SS100-J	1P1SS100000004G	DB9	TB-4	N/A	DC-Jack

MODEL NAME	PART NUMBER	Description
UV305-0510(US-DC)	50500051500003G	DC jack (3.5/1.35/7.5 mm) power adapter, 100~240VAC input, 1.0A @ 5 VDC output, US plug, LV6
UVE305-0510 (EU-DC)	50500051500013G	DC jack (3.5/1.35/7.5 mm) power adapter, 100~240VAC input, 1.0A @ 5 VDC output, EU plug, LV6
UVE305-0510(UK-DC)	50500051500023G	DC jack (3.5/1.35/7.5 mm) power adapter, 100~240VAC input, 1.0A @ 5 VDC output, UK plug, LV6
