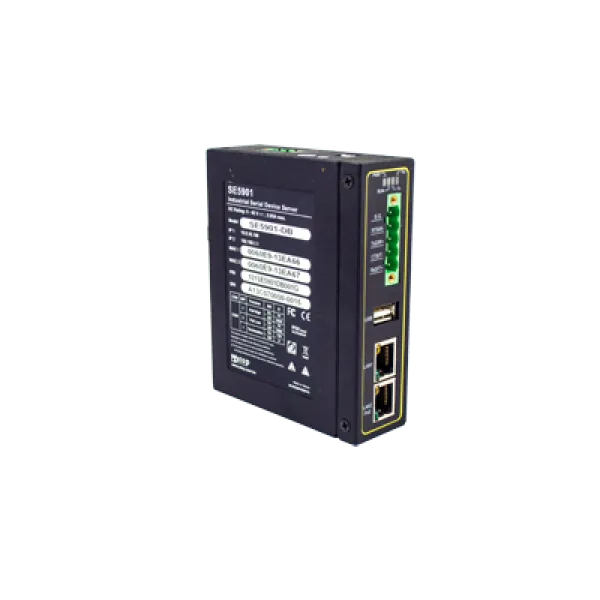

SE5901 Series

1-Port Industrial Secure Wide-Temperature Serial Device Server

  • Industrial EMC protection, wide temperature operation, -40°C~85°C
  • 2-port 10/100Mbps Fast Ethernet,
  • 1-port USB 2.0 high speed OTG
  • TCP Server/Client, UDP, Virtual COM and Tunneling modes supported
  • Embedded security with IPsec or OpenVPN support
  • Remotely monitor, manage, and control industrial field devices
  • Optional 802.3af PoE models can be powered through the Ethernet cable
  • Configuration via Web Browser/ Telnet/ Windows Utility
  • Remote firmware upgrade, link redundancy via RSTP
  • Rugged metal case with wall or DIN-Rail mount

Make Serial Devices Ready to the Network The Industrial Serial Device Server SE5901 is a cost effective gateway for Ethernet (TCP/IP) and serial signal communications; allowing almost any serial device to be connected to a new or existing Ethernet network. By encapsulating serial data and transporting it over Ethernet, SE5901 offers full duplex and bi-directional data seamlessly between the serial port and the Ethernet network. Advanced embedded security SE5901 embeds IPsec VPN Encryption, that allows you to tunnel your data securely throught the internet and prevent unauthorized control of your Serial Devices by malicious people. Easy to Use Flexible configuration options enable this unit to be setup over Ethernet by Telnet, Web Browser, or our Windows Utility. Packed in a rugged metal housing for wall or DIN-Rail mount with 9-48 VDC wide range power input, SE5901 is ideal for almost any industrial and manufacturing automation process. ATOP Virtual COM software provides a virtual environment for applications when accessing SE5901 through TCP. Specifically Designed for Automation Fields and Harsh Environments In industrial and manufacturing automation fields, SE5901 is used as a field device to connect the Ethernet through TCP/IP protocol directly. It is also specially designed for conjunction with PLCs, HMIs, Barcode Scanners, Data Terminals, and much more..Its design protects it from very harsh EMC and environmental conditions, making it a cost-effective choice for advanced applications. Rugged and flexible for advanced developments SE5901 embeds high EMC protection, wide temperature operation, programming and installation flexibility in one device. PoE versions can be powered through Power-over-Ethernet (PoE 802.3af), without additional cabling and power supply. SDK versions allow you to make use of the powerful hardware and develop your own applications on top of ATOP’s reliable SDK.
Network Interface
Speed IEEE 802.3 10BaseT IEEE 802.3u 100BaseT(X)
PoE standard supported IEEE 802.3 af (PoE)
Connector ports RJ45 x 2
Serial Interface
Connector D-Sub9 RS-232/422/485 software selectable (DB models) 5.08mm 5-Pin Terminal block RS-232/422/485 sw selectable (TB models)
Ports 1
Baud Rate 1,200 ~ 921,600 bps software selectable
Data Bits 5, 6, 7, 8 software selectable
Stop Bits 1, 2 software selectable
Flow Control None, Xon/Xoff, RTS/CTS
Other Interfaces
USB Ports 1
Speed USB 2.0
Connector USB A Type
Software
Protocols IPv4, ICMP, TCP, UDP, DHCP Client, SNMPv1,v2c,v3, HTTP, HTTPS, SMTP/TLS, Telnet, RFC2217, 802.1D-2004 RSTP, Security through OpenVPN or IPsec (host-to-host or host-to-side) with up to 37.9Mbps VPN throughput, and PPTP
Configuration Atop Management Utility, Web UI, Telnet
VirtualCOM Windows/Linux redirection software
Link Modes - TCP Client Single destination or VirtualCOM
Link Modes - TCP Server 4 Connections; VirtualCOM or reverse Telnet
Link Modes - UDP Up to 4 Ranges IP
Power Value
Input Voltage 9 - 48VDC (non-PoE Models); or through Ethernet Cable (PoE versions)
Input Current (@ 9VDC) 0.65 A @ 9 VDC
Power Consumption Approximately 6 W (Max)
Connector 3-Pin 5.08mm Lockable Terminal Block
Reverse Polarity Protection Yes
Physical Characteristics Value
Housing IP30 SPCC housing
Dimension (W x H x D) 32 x 110 x 90 mm (1.26 x 4.33 x 3.54 in)
Weight 400g
Installation DIN-Rail , Wall mount (optional kit)
Reset Button Yes
Environmental Limits
Operating Temperature -40°C~85°C (-40°F~185°F)
Storage Temperature -40°C~85°C (-40°F~185°F)
Ambient Relative Humidity 5%~95%, 55°C (Non-condensing)
Certification Standard
Safety EN60950-1:2006; EN62368-1
EMC FCC Part 15, Subpart B, Class A EN 55032, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-2, EN 61000-6-4
RoHS Yes
REACH Yes
Standard Item Test Value Level
IEC 61000-4-2 ESD Contact Discharge ±8KV 4
IEC 61000-4-2 ESD Air Discharge ±15KV 4
IEC 61000-4-3 RS Radiated (enclosure) 10 V/m 3
IEC 61000-4-4 EFT AC Power port ±2.0KV 3
IEC 61000-4-4 EFT DC Power Port ±2.0KV 3
IEC 61000-4-4 EFT Signal Port ±2.0KV 3
IEC 61000-4-5 Surge AC Power Port Line-to Line±1.0KV 3
IEC 61000-4-5 Surge AC Power Port Line-to Earth±2.0KV 3
IEC 61000-4-5 Surge Signal Port Line-to Earth±2.0KV 3
IEC 61000-4-6 CS Conducted (enclosure) 10 V rms 3
IEC 61000-4-8 PFMF Enclosure 30 A/m 3
IEC 61000-4-11 DIP Power Port - A
Certification Standard
Shock IEC 60068-2-27
Drop IEC 60068-2-32
Vibration IEC 60068-2-64
Warranty 5 Years
MTBF 21.16 years (MIL-HDBK-217F-based prediction)

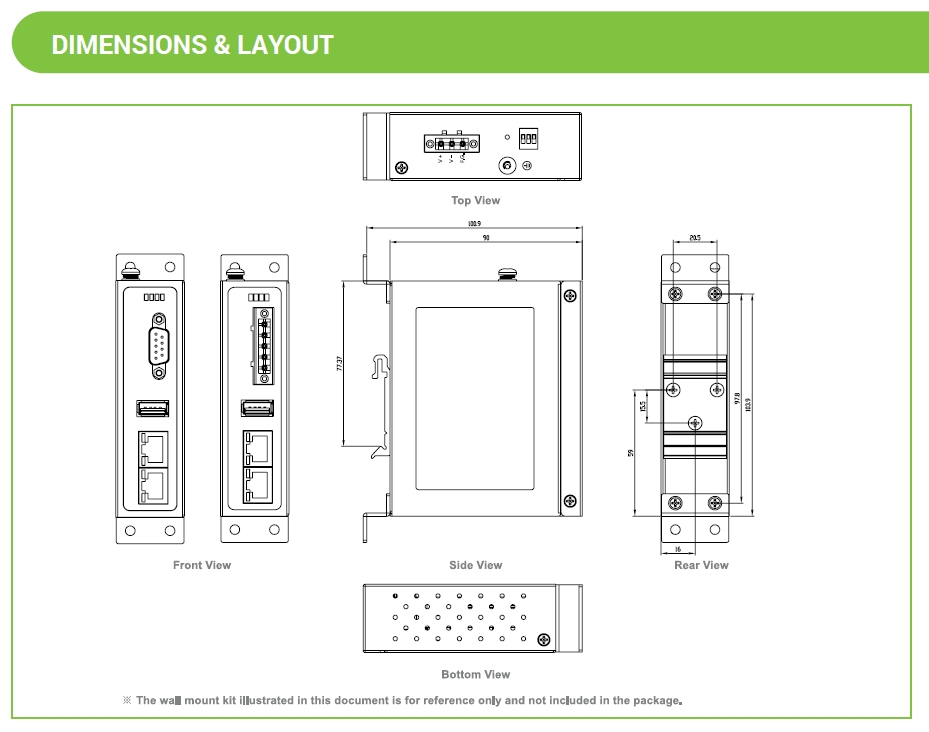

DIMENSIONS & LAYOUT

DIMENSIONS & LAYOUT
MODEL NAME PART NUMBER DESCRIPTION ETHERNET PORTS SERIAL PORTS
SE5901-DB 1P1SE5901DB001G 1-port RS-232/422/485 Ind. Serial Device Server, DB9 2 (RJ45) 1 (DB9)
SE5901-TB 1P1SE5901TB001G 1-port RS-232/422/485 Ind. Serial Device Server, TB5 2 (RJ45) 1 (TB)
SE5901-PoE-DB 1P1SE5901POE03G 1-port RS-232/422/485 Ind. Serial Server, DB9, PoE Powered 2 (RJ45) 1 (DB9)
SE5901-PoE-TB 1P1SE5901POE04G 1-port RS-232/422/485 Ind. Serial Server, TB5, PoE Powered 2 (RJ45) 1 (TB)
SDK version Contact Headquarter SDK programmable version available upon request 2 1
MODEL NAME PART NUMBER DESCRIPTION
UN315-1212 (US-Y) 50500151120003G Y-Type power adaptor, 100~240VAC input, 1.25A @ 12VDC output, US plug, LV6
UNE315-1212 (EU-Y) 50500151120013G Y-Type power adaptor, 100~240VAC input, 1.25A @ 12VDC output, EU plug, LV6
ADP-DB9(F)-TB5 59906231G Female DB9 to Female 3.81 TB5 Converter
WMK-315-Black 70100000000050G Black Aluminum Wall Mount Kit
